LEVEL CONTROLLER – Functional type

Functional level controller

Features

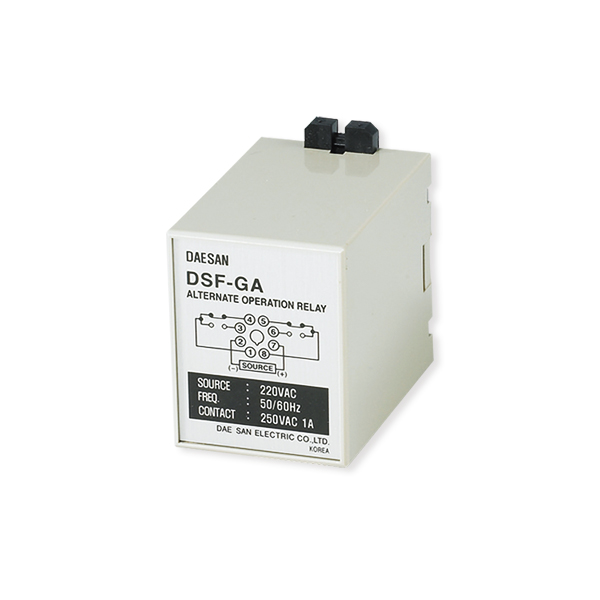

DSF-G1 DSF-G2 DSF-G3 DSF-G5 DSF-G6 DSF-GS DSF-GA
operating conditions Low water alarm, water level display and automatic supply/drainage operation Full water alarm, automatic operation supply/drainage operation Full water, low water alarm, water level display and automatic supply/drainage operation Sequential operation of 2 pumps Simultaneous control of 3 points using float switch 3 Zone Water Level Display Alternate operation of two pumps
Simultaneous control of water source/water supply tank
Maximum Sensing Distance 300m 300m 300m 300m 300m 300m
Rated voltage AC 110/220V(50/60Hz), AC 380V(50/60Hz) AC 220V(60Hz)
Secondary Voltage
(Electrode Voltage)
AC 10V
Motion Resistance 14kΩ
Return Resistance 19kΩ
Mounting Type 16pin socket type(DS-F16) 8pin socket
type(DT-04)
Contact capacity 5A, 250VAC 1A, 250VAC
Power Consumption 1.4 VA 1.4 VA 1.9 VA 1.4 VA 1.9 VA 1.4 VA 1.1 VA
Withstand voltage AC 1,500V/min
Operating ambient temperature -10℃ ~ 60℃
Ambient humidity 45 ~ 80% RH
