LEVEL CONTROLLER – Standard type

Standard type level controller

Features

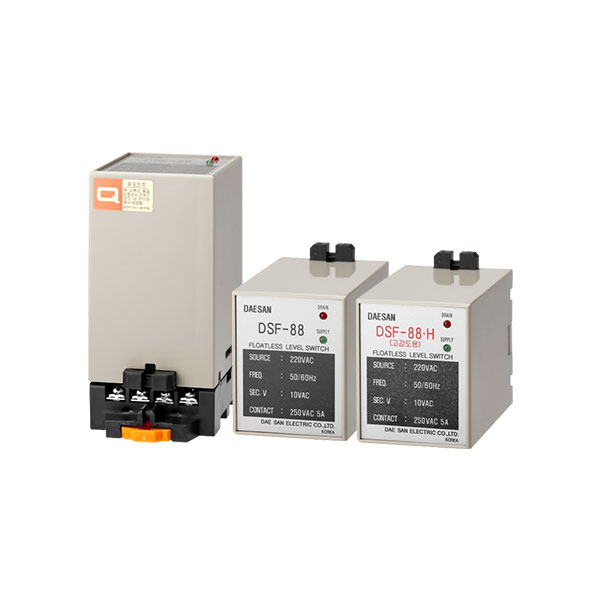

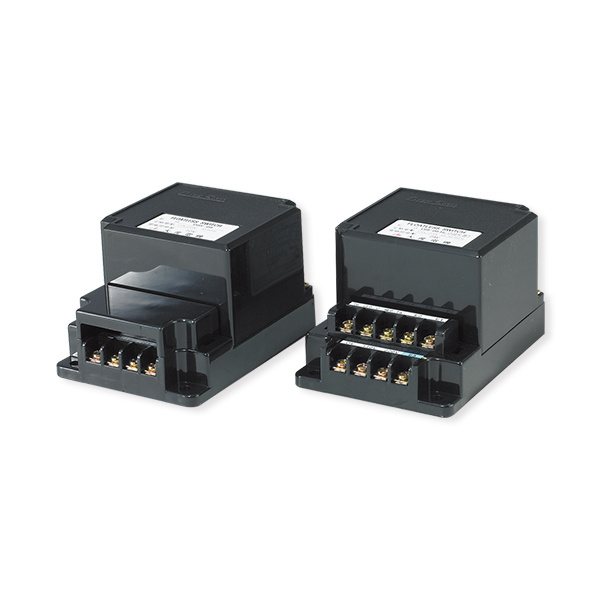

Product No. DSF-09 DSF-09H DSF-88 DSF-88H DSF-88

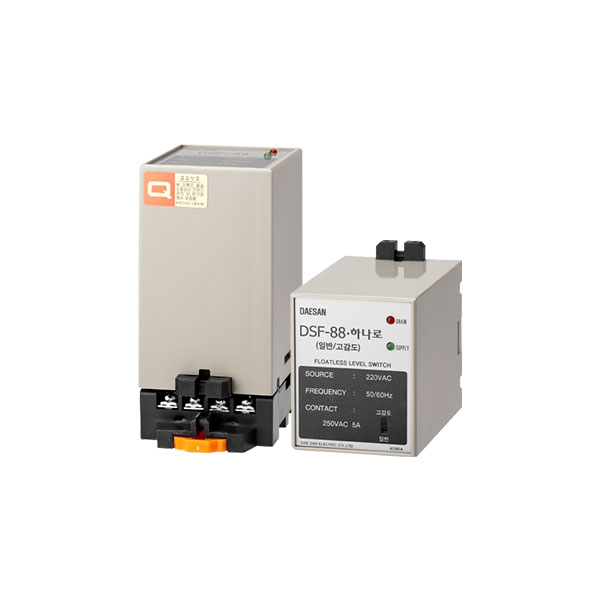

Hanaro

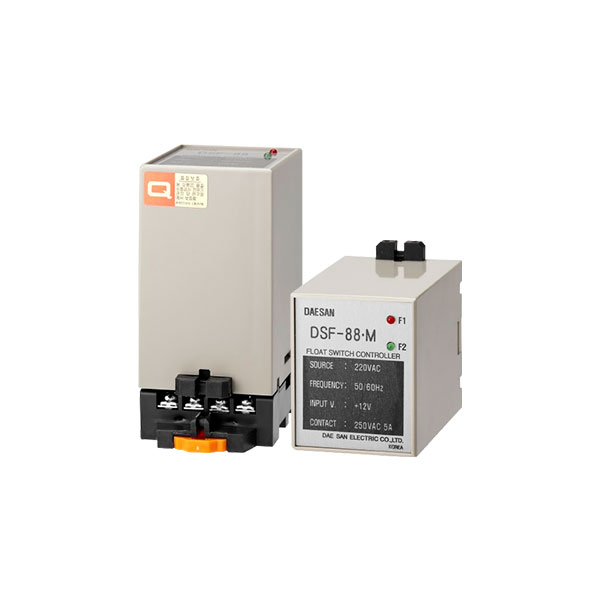

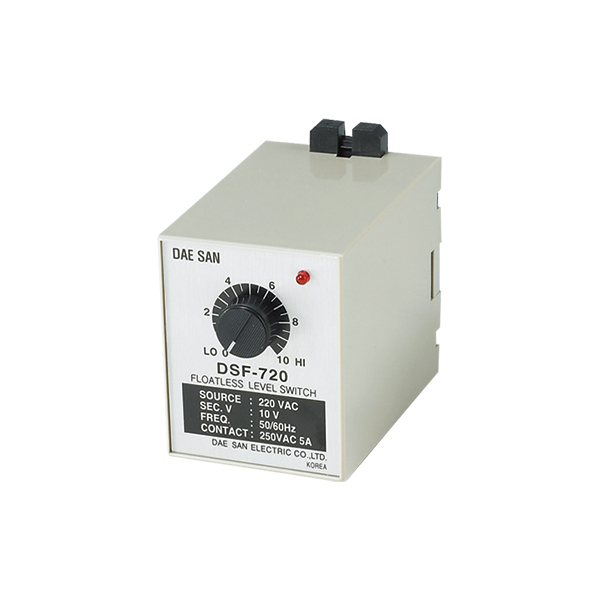

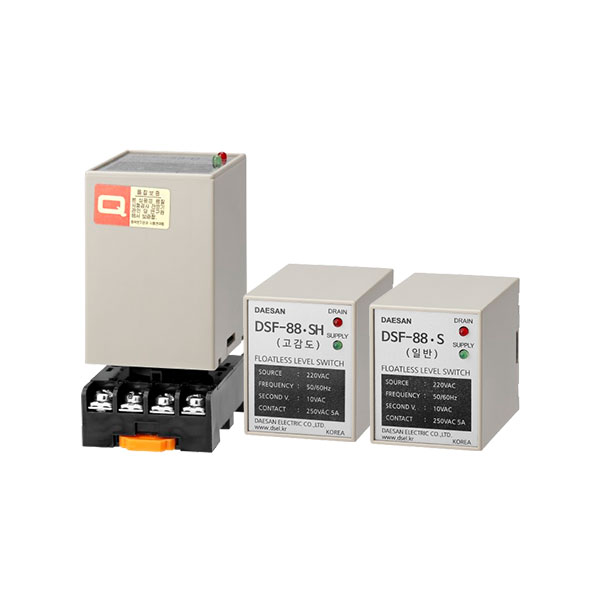

DSF-88S DSF-88SH DSF-88L DSF-88HD DSF-720 DSF-88M DSF-88D
operating conditions Automatic Water Supply and Drainage Control Control of two float switches MINI FLOAT ‘-D’Type only
Specifications General
senesitivity
High
sensitivity
General
senesitivity
High
sensitivity
Select
sensitivity
General
senesitivity
High
sensitivity
Long
distance
DC V.
interelectrode
Variable
sensitivity
Socket type Small size / socket type
Sensing distance 500m 45m 500m 45m 500m/45m 500m 45m 1 km 1 km 45m
Supply voltage AC 110/220V,
AC380V (50/60Hz)
AC 110/220V, AC 220V, AC 380V (50/60Hz) AC 220V
60Hz
Interelectrode voltage AC 10V DC 24V AC 10V DC 12V
operate resistance 9.5kΩ 27.4kΩ 9.5kΩ 27.4kΩ 9.5kΩ/
27kΩ
9.5kΩ 27.4kΩ 2.1kΩ 14kΩ
34.3kΩ

~80kΩ
release resistance 14.5kΩ 43.6kΩ 14.5kΩ 43.6kΩ 14.5kΩ/
43.6kΩ
14.5kΩ 43.6kΩ 5kΩ 25.6kΩ
59kΩ
0kΩ
~110kΩ
Mount type Desk type 8pin socket : DT-04 8pin socket : DT-07 8pin socket : DT-04 DT-07 included in product
control output 5A, 250VAC 2A,
250VAC
Power consumption 0.48VA 0.52VA 0.49VA 0.7VA 0.3VA
Dielectric strength AC 1,500V/min
Ambient temperature -10℃ ~ 60℃
Ambient humidity 45 ~ 80% RH

Product selection according to the type of water

Type of Water Salt water[0.04kΩ•cm] City water[7~12kΩ•cm] Purified water[5~17kΩ•cm]
Application Model
