LEVEL SENSOR – P.P type

DM-F25/F30

Shape/Dimension drawing

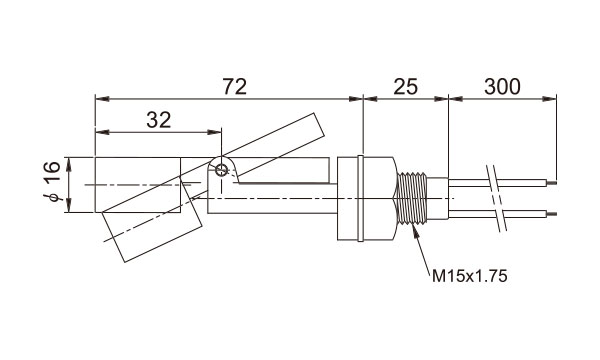

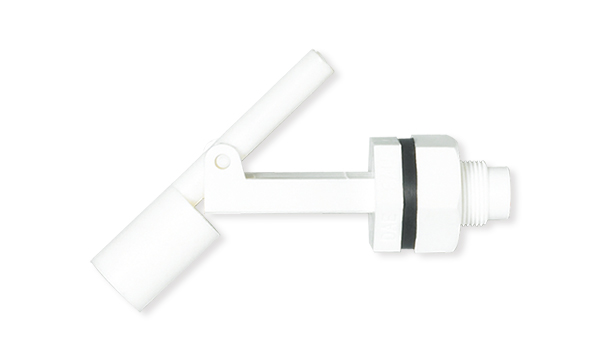

DM-F25

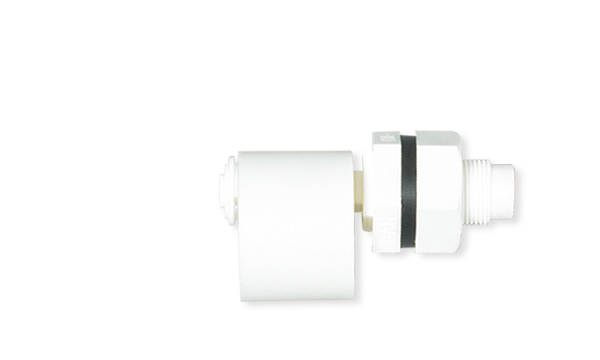

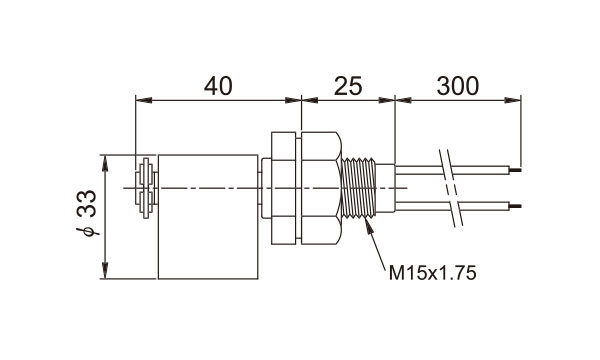

DM-F30

Specification

Maximum Temperature 80℃ Maximum switching voltage DC 350[V] / AC 300[V]
Maximum Contact capacity DC 50[W] / AC 70[VA] Maximum switching current DC 0.7[A] / AC 0.5[A]
Material of Pipe P.P.(Polypropylene) Material of Float P.P. (Polypropylene)
Wire Specifications Default UL 1007 AWG 24, 300mm
Custom Type: Teflon wire, PVC Cable / Length: 300mm or more
b3-소형 레벨 스위치(PP형) B레벨 센서

DM-F25/F30
