LEVEL CONTROLLER – AUTOMATIC LEVEL SWITCH

DSF-201(Normal / High)

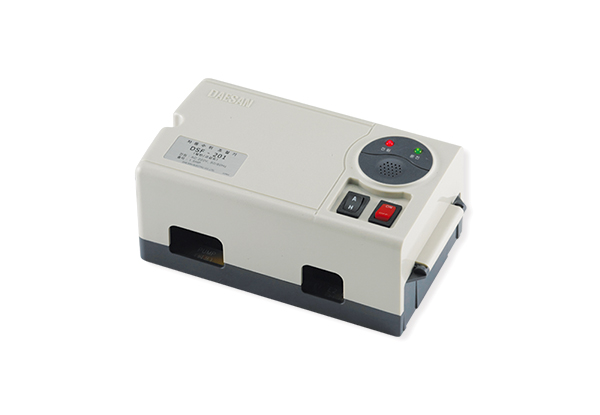

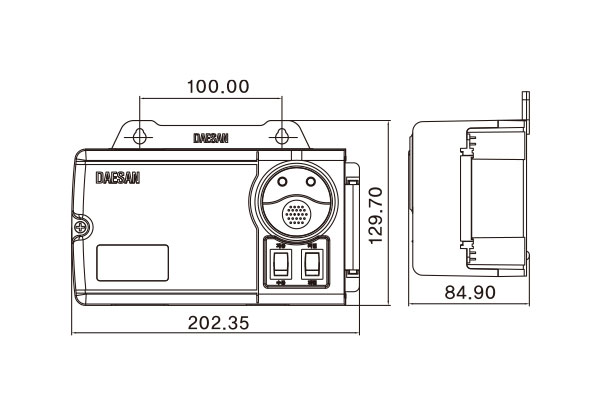

External dimensions

Design registration No. 30-0643104

Features

Adjustable Normal or Sensitivity by changing switch.
Adjustable Water or Drain by changing switch.
Easy installation.

Specification

Rated voltage Maximum Load Function Interelectrode voltage, resistance
Normal
Operate~Release
High
Operate~Release
AC 220V 1.5HP below Supply/Drain, Normal/High 11kΩ~15kΩ
AC 10V
40kΩ~71kΩ
AC 10V

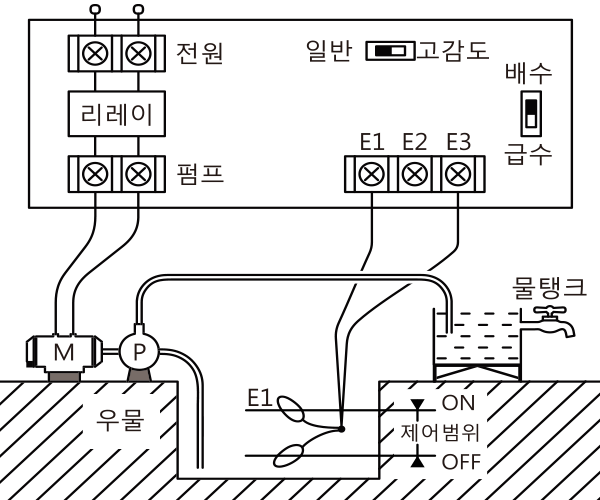

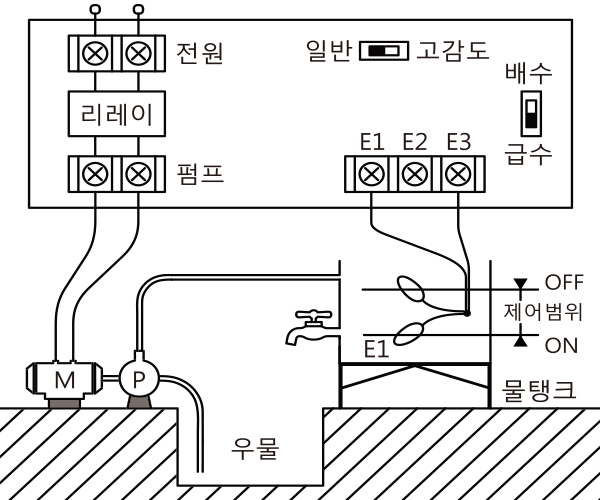

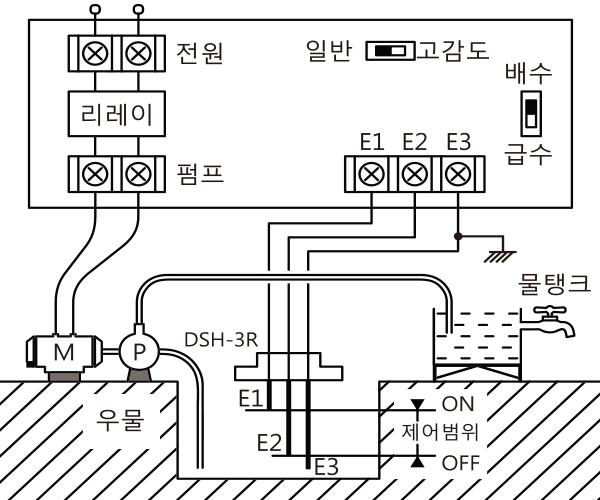

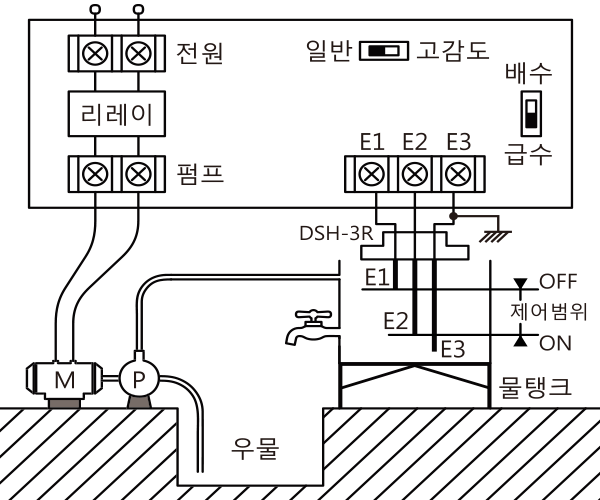

Connection diagram (Normal / High)

When supplying

When drainaging

Related HOLDER
DSH-3R/DHS-N3P(SUS)

When supplying (Float switch)

When drainaging (Float switch)

Related FLOAT LEVEL SWITCH
DSF-011/DSF-013/DSF-015/DSF-033/DSF-035

Way of usage

  1. Connect the lines after check the voltage.
  2. Choose Water or Drain switch (Factory default : Drain)
  3. Choose Normal or Sensitivity switch (Factory default : Normal)
  4. Connect the electrode as proper position of E1(short), E2(middle), E3(long)
  5. Remove whole cover of E3 stainless steel rod.
  6. in supplying water : If water level reaches to E1, pump stops running. And if level is under E2, pump starts run.
  7. in draining water : If level reaches to E1, pump starts run. And if level is under E2, pump stops running.
  8. When running Float level s/w, use only E1and E3 terminal.
    ※ When running Float level s/w use only when drainaging(Black, Yellow)
  9. If there were problem in automatic operation, please operate by manual mode temporarily. (But, be cautious with occuring idlling of pump)
  10. Earthing with E3 on water tank when water tank is made of meta
