LEVEL CONTROLLER – Functional type

DSF-G1

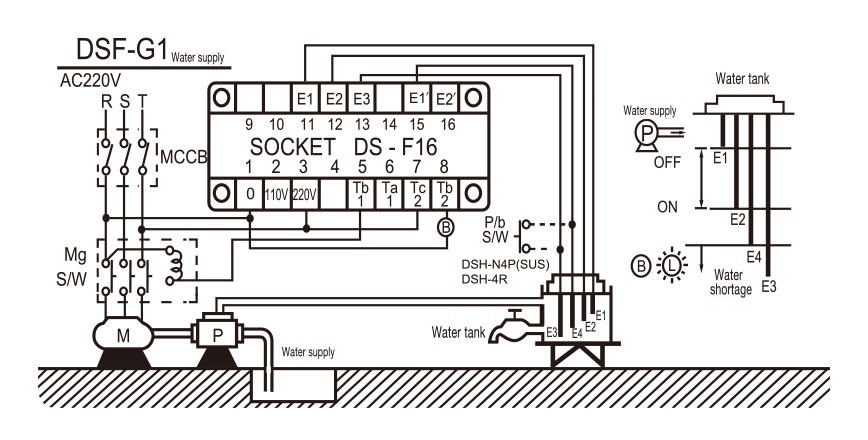

Low water warning and water supply, automatic drainage operation and pump idling prevention
(Simultaneous control of water supply source and water tank, automatic operation and prevention of pump idling)

Shape/Dimension drawing

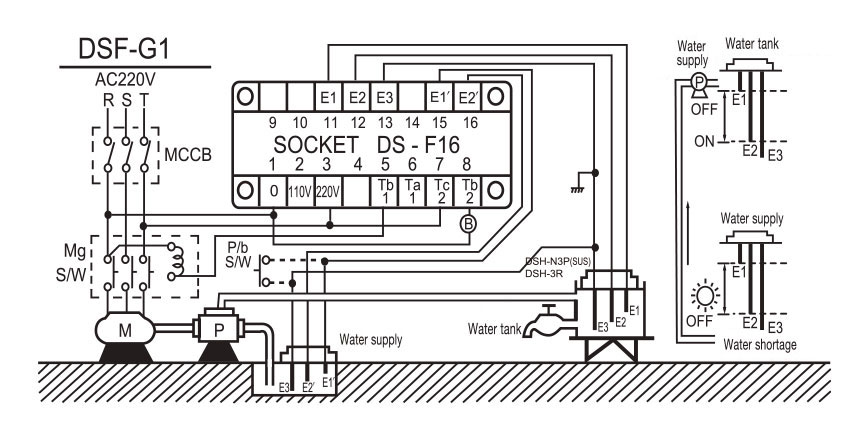

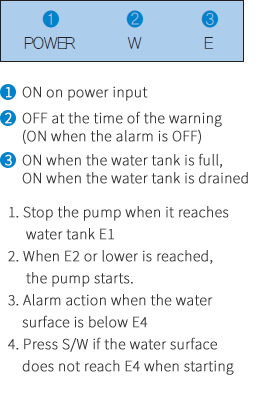

Low water alarm, water level display and automatic supply/drainage operation

Simultaneous control of water source/water supply tank

Terminal terms

1 : OV
2 : AC110V
3 : AC220V
4 : –
5 : Tb1 (Water supply)
6 : Ta1 (Drainage)

7 : Tc2 (Water supply, Drainage)
8 : Tb2 (Alarm for abnormal water shortage in water supply source)
9 : –
10 : –
11 : E1

12 : E2
13 : E3
14 : –
15 : E1’(E4)
16 : E2’

Specification

Product No. Usage Maximum Sensing Distance Rated voltage Secondary Voltage
(Electrode Voltage)
Motion Resistance Return Resistance Power Consumption Mounting Type Contact capacity
DSF-G1 Dry water alarm, watering/draining automatic operation 300m AC
110/220V
(50/60Hz)
AC 10V 14kΩ 19kΩ 1.4VA Socket
DS-F16
5A,
250VAC
Simultaneous control of water supply source and water tank
