LEVEL SENSOR – SUS type

DM-S Custom made type series

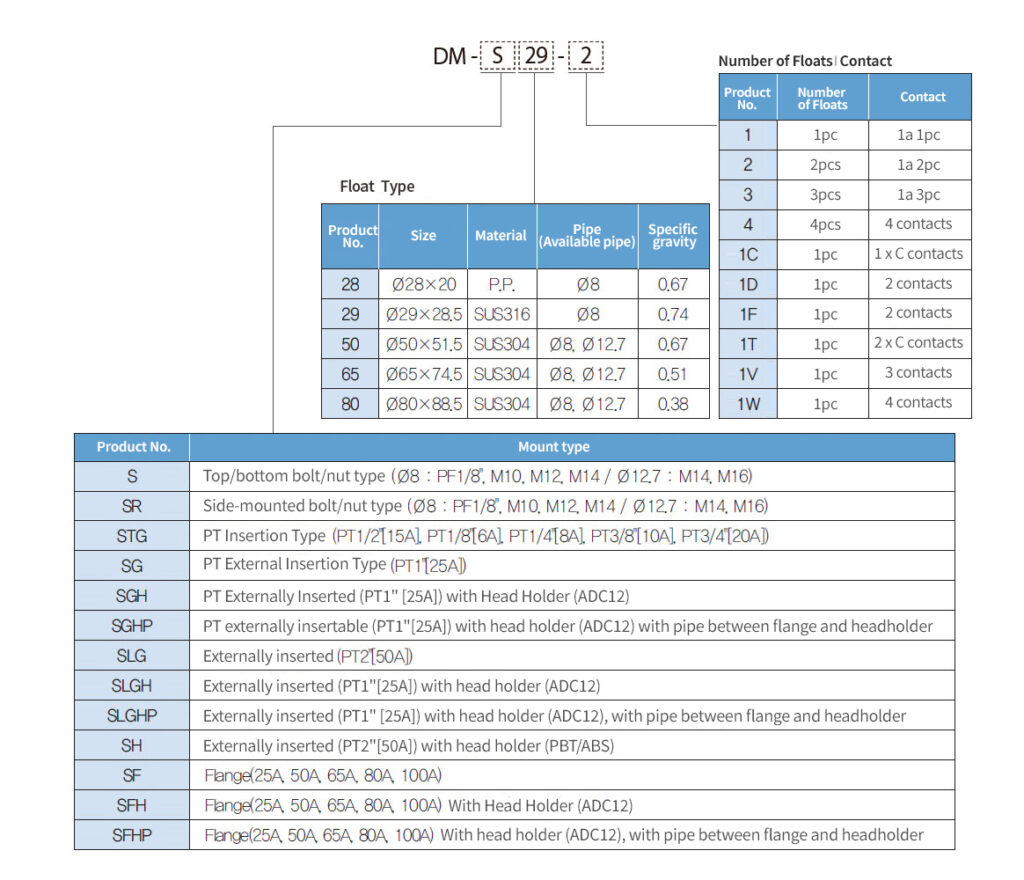

Model type

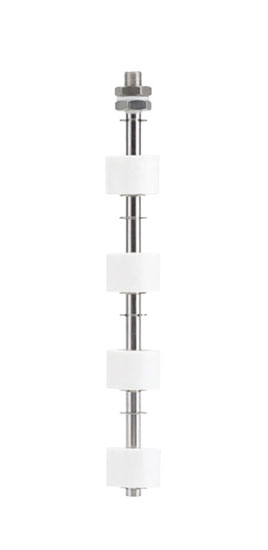

DM-SP28-4

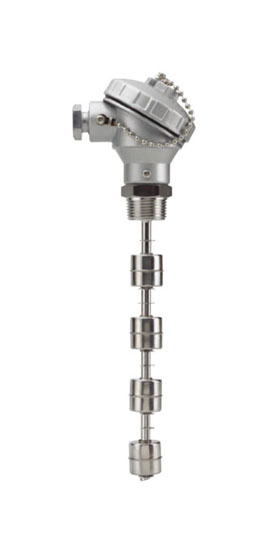

DM-SGH29-4

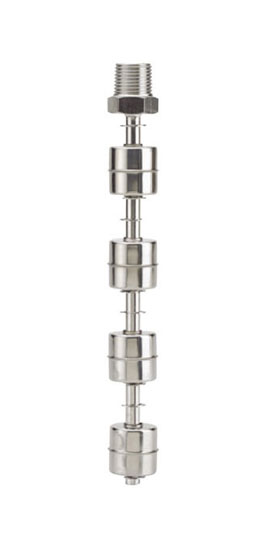

DM-STG29-4

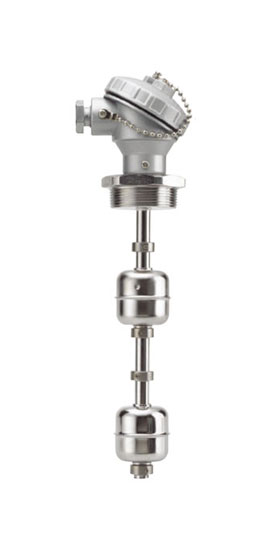

DM-SLGH50-2

DM-SLG50-2

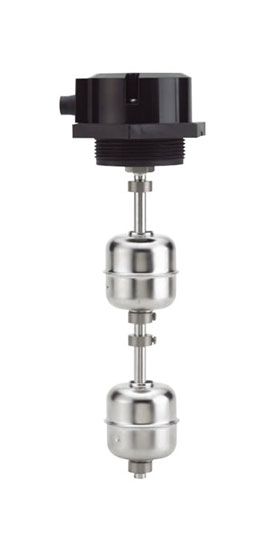

DM-SH50-2

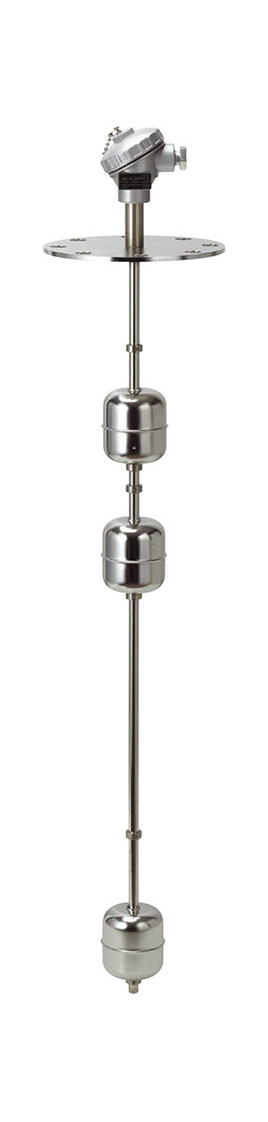

DM-SFHP80-3

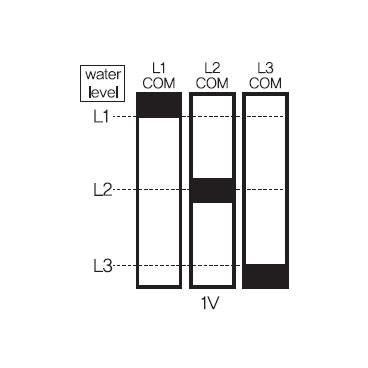

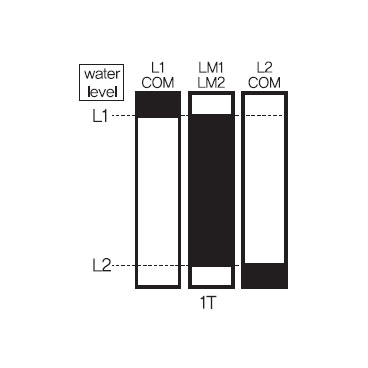

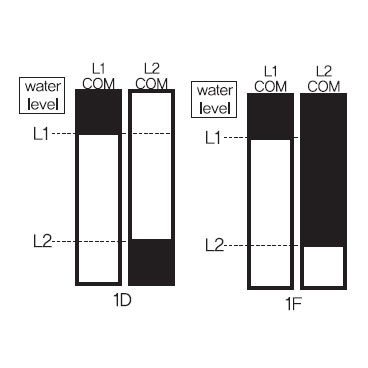

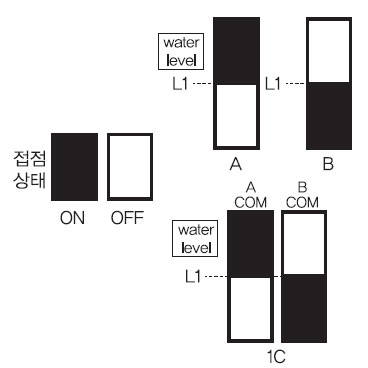

Contact form

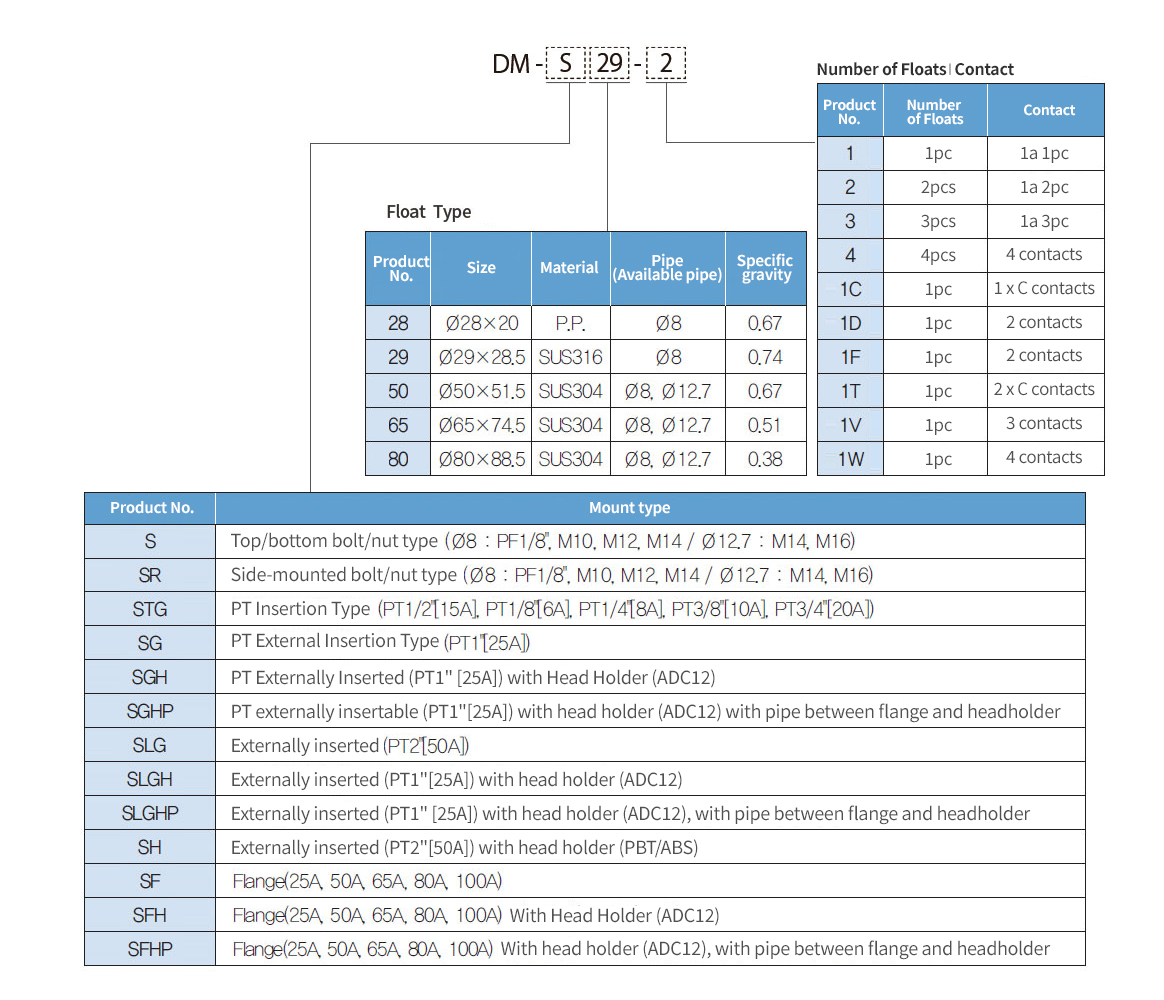

Custom made specification

Contact points (L1, L2, L3, L4) according to the number of contact
Basic contact configuration (B), Float. Can be changed to A contact when ordering
Various combinations of contact configurations are possible.
Pipe length (L) can be ordered up to 1800mm
Pipe material is basic 304 and can be changed to 316
Cable / cable length Basic PVC material 400mm, Over 400mm and material change is additional order specification.
Cable (PVC – available by standard, Teflon wire), cable (PVC, silicone-Teflon cable) can be changed

DM-S Model

FLOAT TYPE

b4-소형 레벨 스위치(SUS형) B레벨 센서

DM-S series
