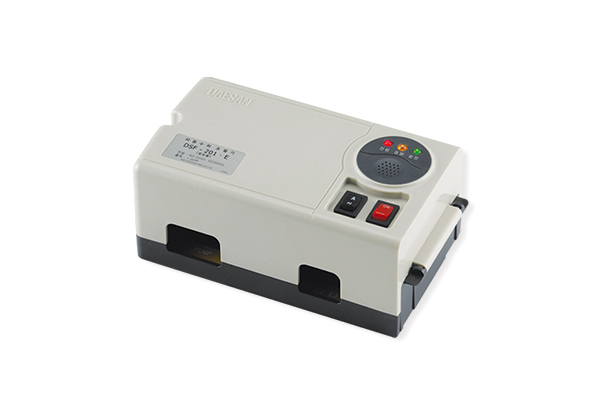

LEVEL CONTROLLER – AUTOMATIC LEVEL SWITCH

DSF-201•E(For Alarms)

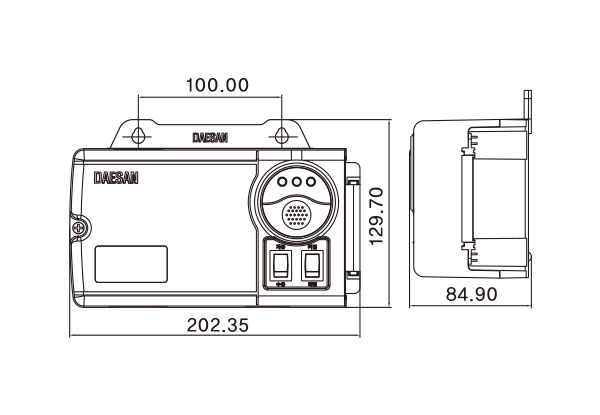

External dimensions

Patent registration No. 10-1116229 Design registration No. 30-0643104

Features

If problem happened in operation, Activate alarm and lamp light-on.
Easy installation

Specification

Rated voltage Maximum Load Function Interelectrode voltage, resistance
AC 220V 1.5HP below Supply/Drain, Built-in buzzer alarm Operate~Release
13kΩ~19kΩ
AC10V

Connection diagram

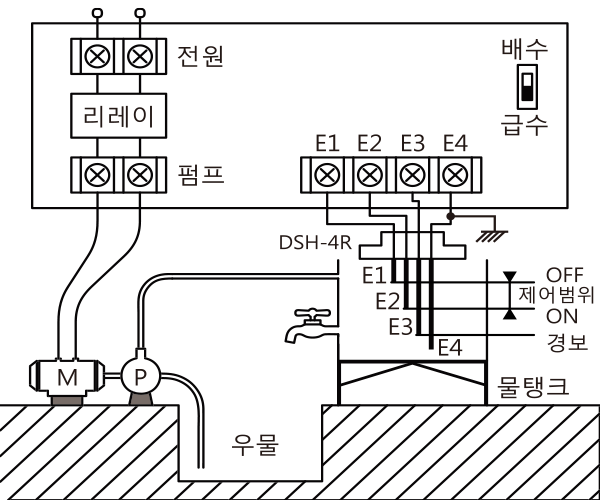

When supplying

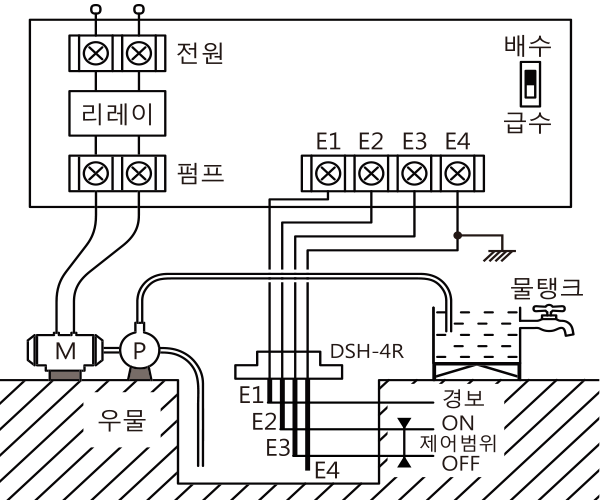

When drainaging

Related HOLDER
DSH-4R/DSH-N4P(SUS)

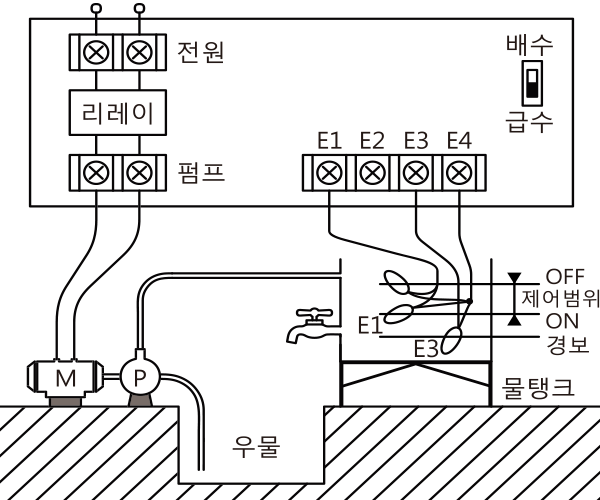

When supplying (Float switch)

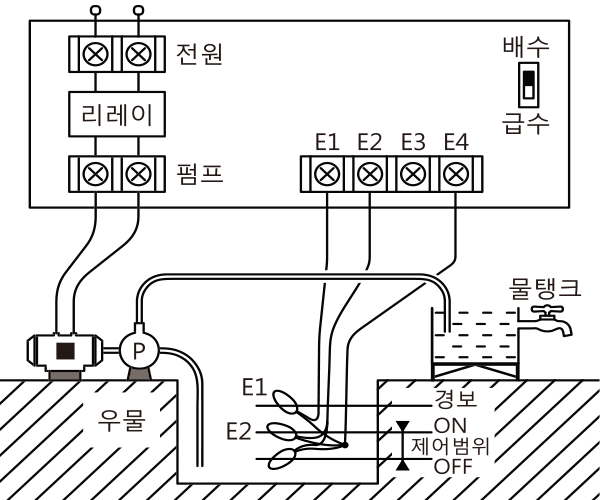

When supplying (Float switch)

Related FLOAT LEVEL SWITCH
DSF-011/DSF-013/DSF-015/DSF-033/DSF-035

Way of usage

  1. Connect the lines after check the voltage.
  2. Choose Water or Drain switch (Factory default : Drain)
  3. Connect the electrode as proper position of E1, E2, E3, E4 .
  4. Remove whole cover of E4 stainless steel rod.
  5. in supplying water : If water level reaches to E1, pump stops running. And if level is under E2, pump starts to run. When water level goes
    below E3, shortage of water signal blinks
    ※ When using Float level s/w : E4and E1, E4and E3(Alarm) (E2 excludes)
  6. in draining water : If water level reaches to E2, pump starts run. And if level is under E3, pump stops running. If water level reaches E1, water filled alarm goes on with light blinking
    ※ When using Float level s/w : E4and E2, E4and E1(Alarm) (E3 excludes)
  7. If ther were problem in automatic operation, please operate by manual mode temporarily. Alarm function will be off while manual running. (But, be cautious with occuring idling of pump)
  8. When using Float level s/w, use only when draining water.(Black, Yellow)
  9. Earthing with E4 on water tank when water tank is made of metal.</li
