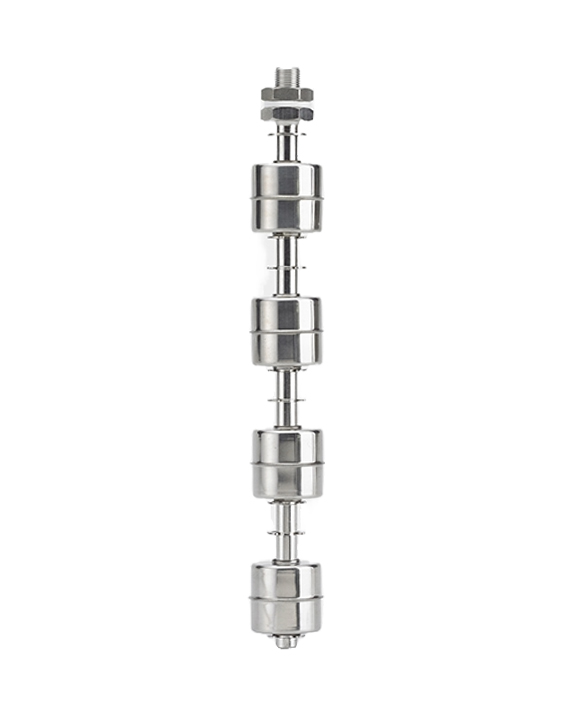

LEVEL SENSOR – SUS type

DM-S

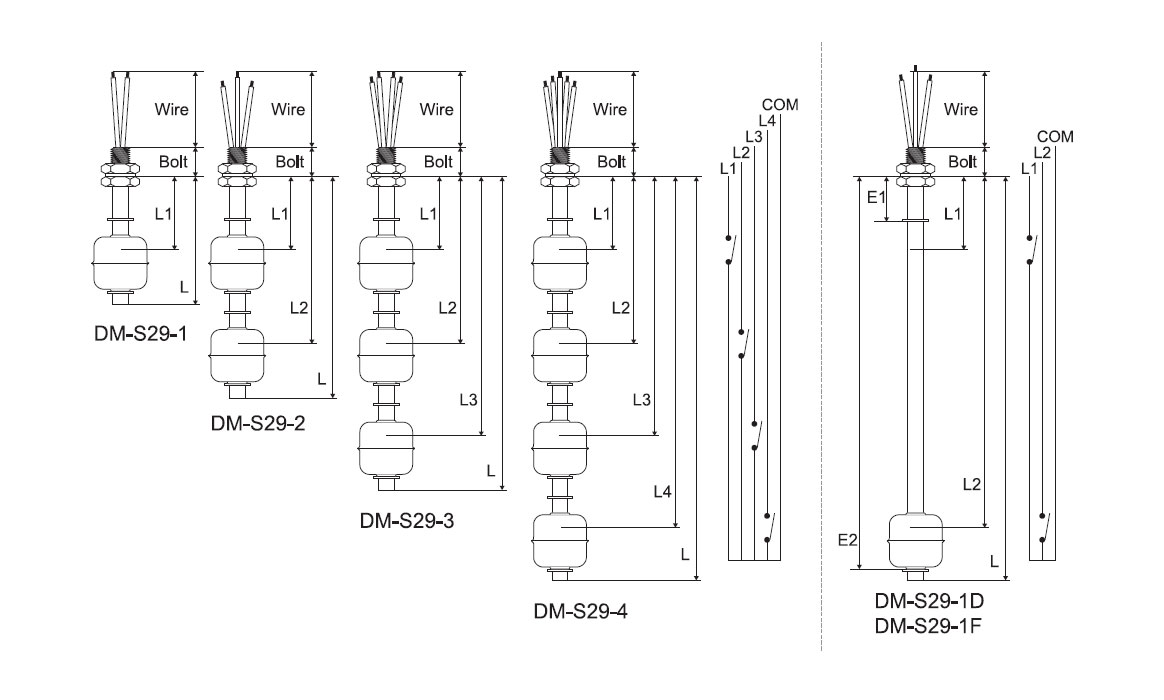

Shape/Dimension drawing

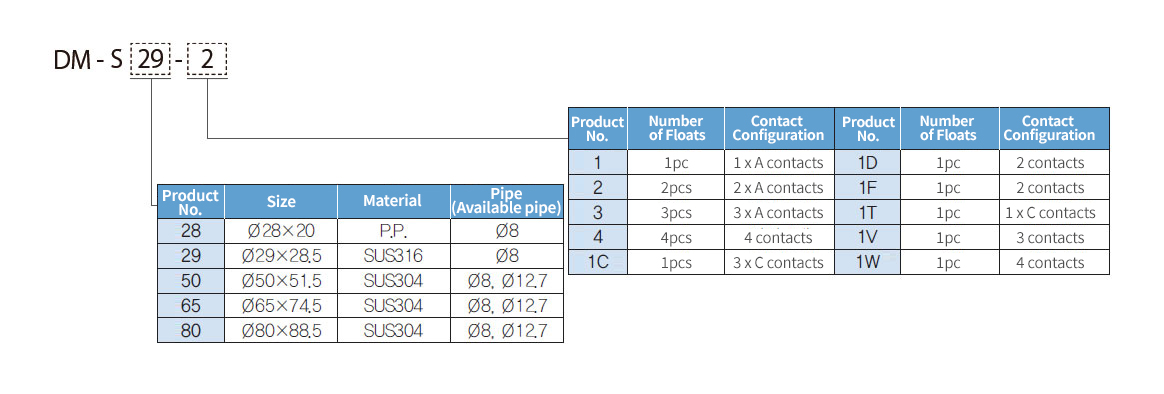

Model type

Specification

Standard Specifications Options
PIPE Length(L) Maximum 1,800mm
Diameter(Ø) Ø8(S28, S29) / Ø12.7(S50, S65, S80) Ø8(S50, S65, S80)
Material SUS304 SUS316
Contact(L1, L2, L3, L4) A type (Float flips to switch to B type) Model Configuration Reference
Bolt Ø8(PIPE) PF1/8 × 15mm(Ø8) PF1/8×20, 25, 30mm / M12×20, 30mm / M14×30mm
Ø12.7(PIPE) M14 × 30mm(Ø12.7) M14 × 40mm / M16 × 30mm
Float Stopper E-ring O-ring
Wire Material PVC Teflon, PVC Cable, Silicone-Teflon Cable
Length 400mm More than 400mm
Maximum Temperature 120℃ Maximum switching voltage DC 350[V] / AC 300[V]
Maximum contact capacity DC 50[W] / AC 70[VA] Maximum switching current DC 0.7[A] / AC 0.5[A]
b4-소형 레벨 스위치(SUS형) B레벨 센서

DM-S
