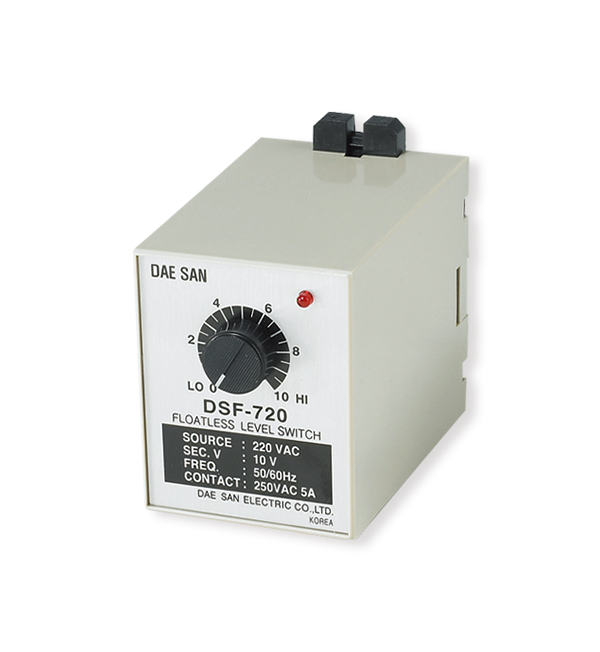

LEVEL CONTROLLER

DSF-720

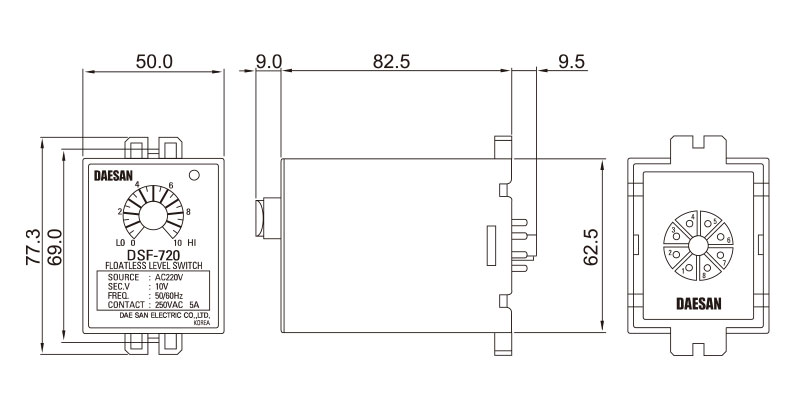

Shape/Dimension drawing

Features

Adjustable ‘Low to High’ sensitivity mode by front panel knob. (Factory setting : Lowest mode)

Specification

Product No. Feature Usage Maximum Sensing Distance Rated voltage Secondary Voltage
(Electrode Voltage)
Motion Resistance Return Resistance Power Consumption Mounting Type Contact capacity
DSF-710 Variable Sensitivity Automatic supply/drainage operation 45m AC 110V AC 10V 0Ω ~ 80kΩ 0Ω ~ 110kΩ 0.49VA Socket
DT-04
5A,
250VAC
DSF-720 AC 220V
DSF-730 AC 380V

※ When using a float level switch instead of an electrode rod, it is used for drainage or drainage contact (N.O.) use

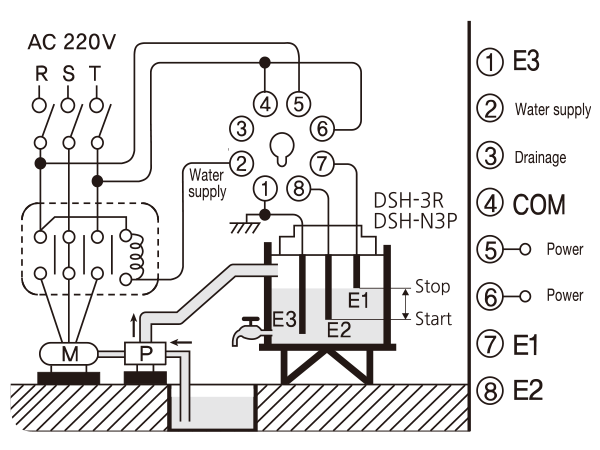

Connection diagram-Water supply

  1. The pump stops when the water level reaches E1.
  2. The pump starts when the water level drops below E2.
  3. Be sure to ground terminal E3.

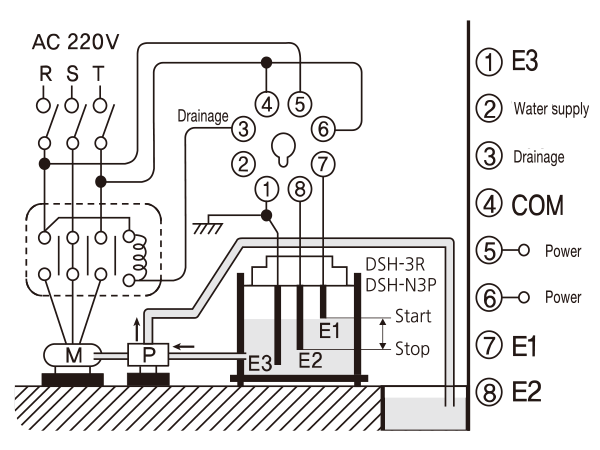

Connection diagram-Water drain

  1. The pump starts when the water level reaches E1.
  2. The pump stops when the water level drops below E2.
  3. Be sure to ground terminal E3.
a1-일반형 수위 조절기 A레벨 콘트롤러

DSF-720
