LEVEL CONTROLLER

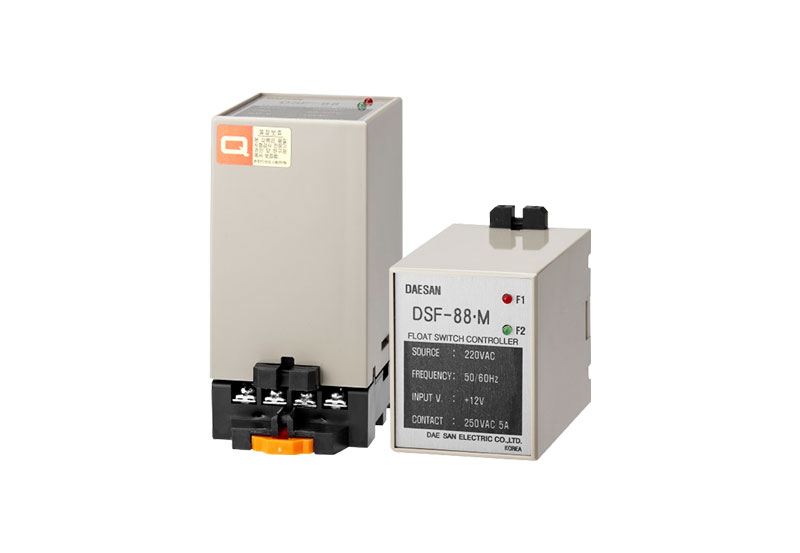

DSF-88·M

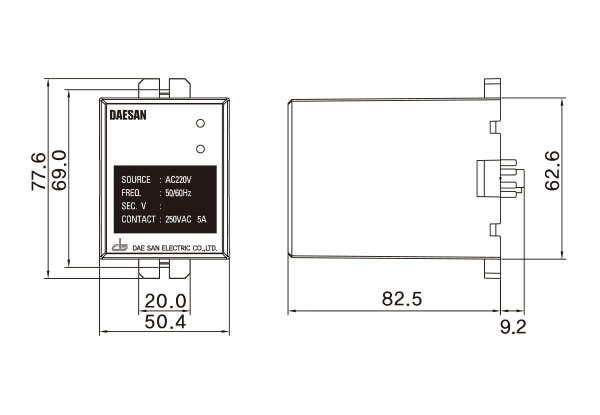

Shape/Dimension drawing

Specification

Product No. Feature Usage Rated voltage Sensor Voltage Power Consumption Mounting Type Contact capacity
DSF-88•M 2 Separate Input signals
2 Separate Output Contacts (2a)
Contact output according to individual input signals of 2 float switches or mini float switches AC 220V
(50/60hz)
DC 12V 0.7VA Socket
DT-04
5A,
250VAC

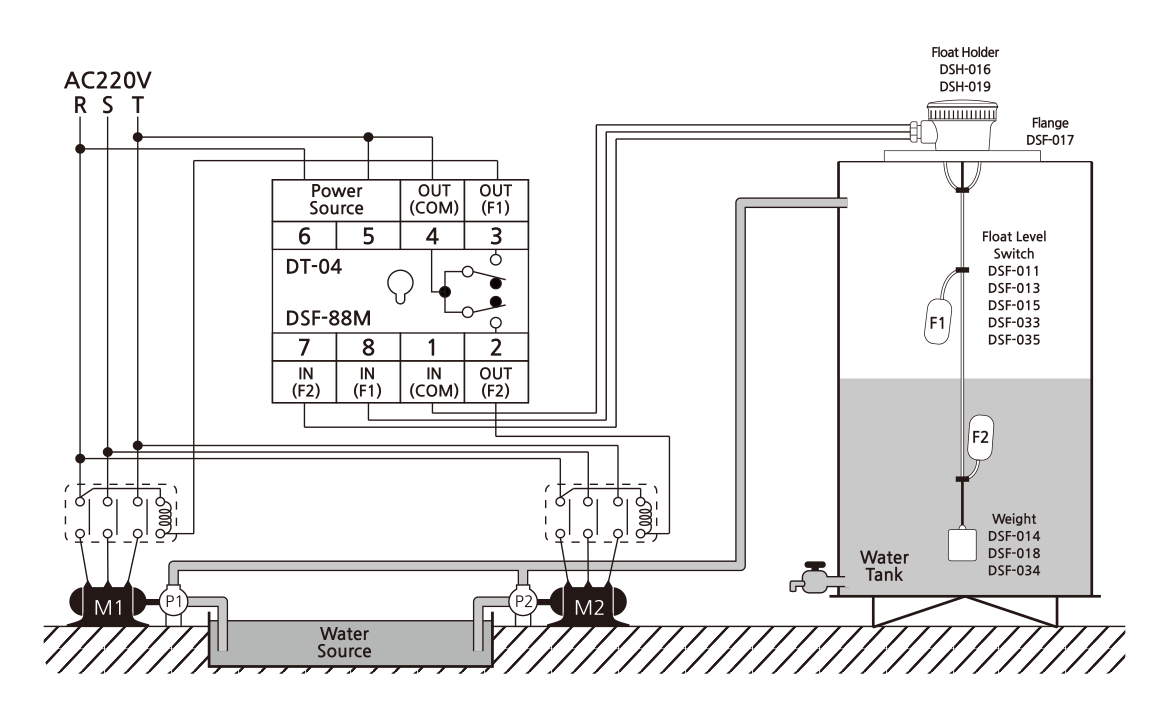

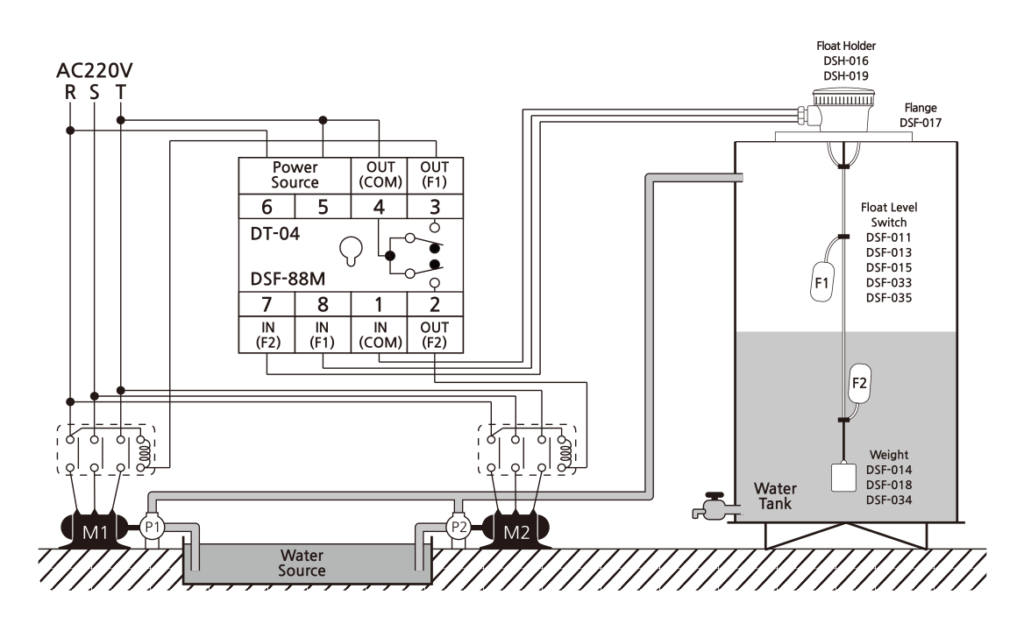

Connection diagram

a1-일반형 수위 조절기 A레벨 콘트롤러

DSF-88·M
