LEVEL CONTROLLER – Functional type

DSF-G5Sequential control for 2 pumps

Sequential control for 2 pumps

※ When using a float level switch instead of an electrode rod, it is used for drainage or drainage contact (N.O.) use

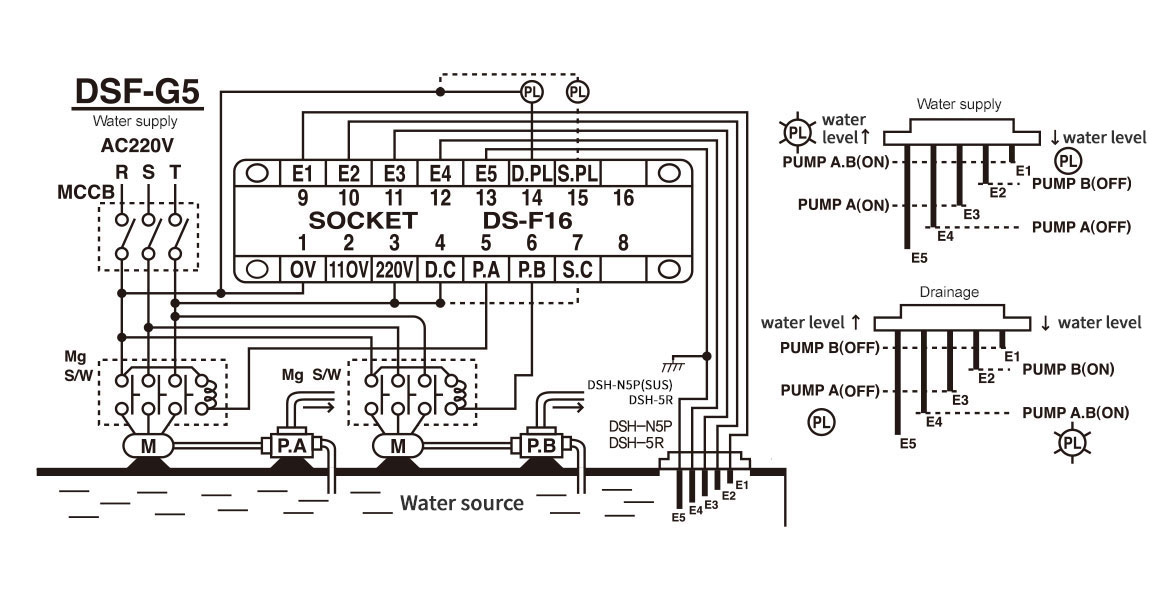

Terminal terms

1 : OV
2 : AC110V
3 : AC220V
4 : D.C : drainage
5 : P.A(PUMP.A) : power supply
6 : P.B(PUMP.B) : power supply

7 : S.C : water supply
8 : –
9 : E1
10 : E2
11 : E3
12 : E4

13 : E5
14 : Lights on, when 2 Drain PUMPs operate.
15 : Lights on, When 2 water supply PUMPs operate.
16 : –

Specification

Product No. Usage Maximum Sensing Distance Rated voltage Secondary Voltage
(Electrode Voltage)
Motion Resistance Return Resistance Power Consumption Mounting Type Contact capacity
DSF-G5 Sequential operation of 2 pumps 300m AC
110/220V
(50/60Hz)
AC 10V 14kΩ 19kΩ 1.4VA Socket DS-F16 5A, 250VAC

Operation

  1. When water level reaches E3, PUMP.A starts to operate.
  2. When water level reaches E1, PUMP.A.B start and LAMP is turned on.
  3. When water level is below E2, PUMP.B stops, PUMP.A operates and LAMP is turned off.
  4. When water level is below E4, PUMP.A also stops operating.
a2-기능형 수위 조절기 A레벨 콘트롤러

DSF-G5
