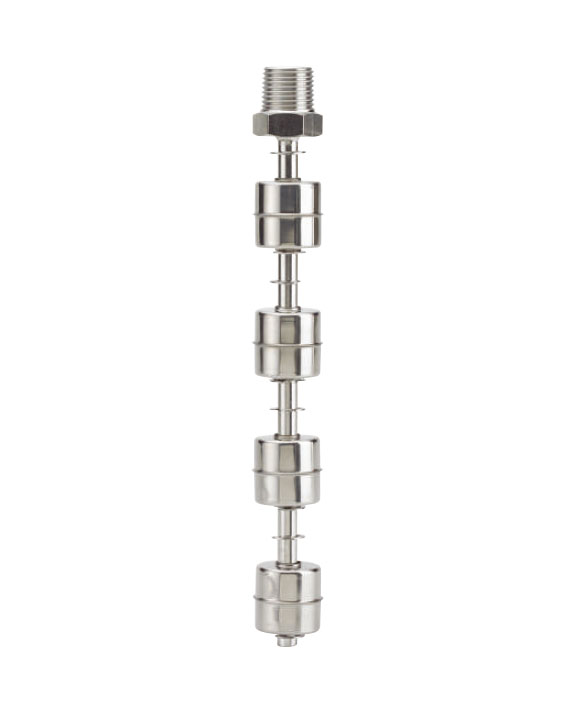

LEVEL SENSOR – SUS type

DM-STG(Custom made type)

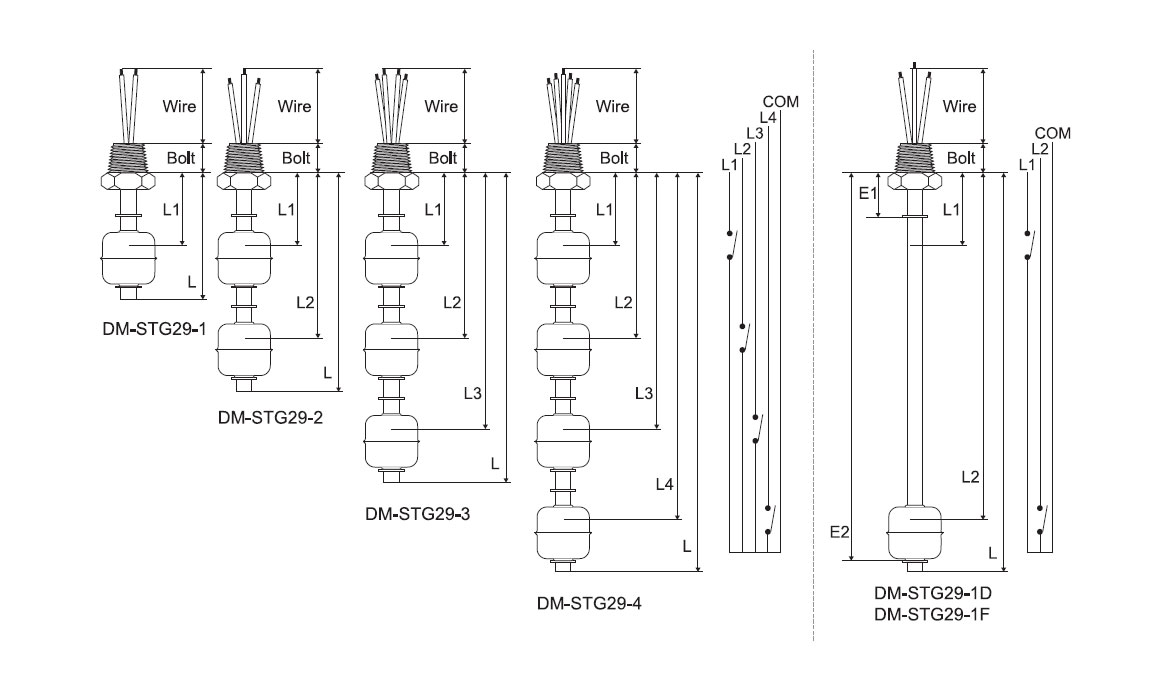

Shape/Dimension drawing

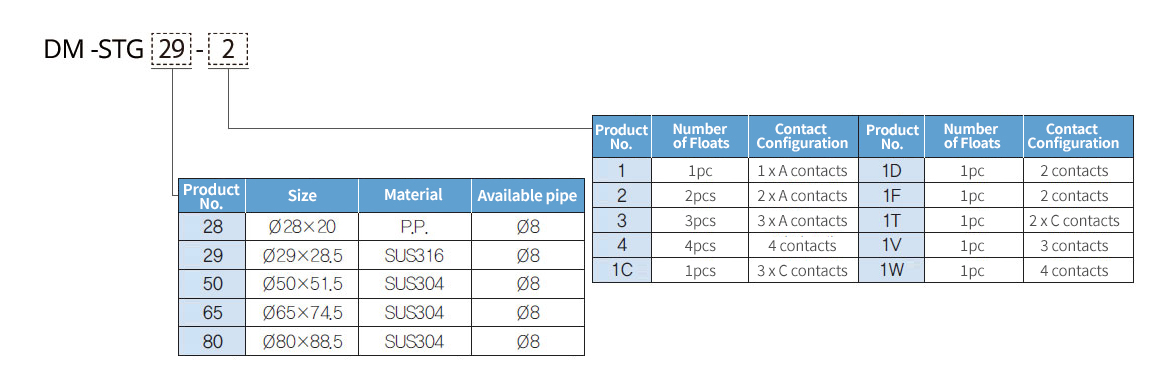

Model type

Specification

Standard Specifications Options
PIPE Length(L) Maximum 1,800mm
Material SUS304 SUS316
Contact(L1, L2, L3, L4) A type (Float flips to switch to B type) Model Configuration Reference
Bolt Ø8(PIPE) PF1/2″[15A] PF1/8″[6A], PT1/4″[8A], PT3/8″[10A], PT3/4″[20A]
Float Stopper E-ring O-ring
Wire Material PVC Teflon, PVC Cable, Silicone-Teflon Cable
Length 400mm More than 400mm
Maximum Temperature 120℃ Maximum switching voltage DC 350[V] / AC 300[V]
Maximum contact capacity DC 50[W] / AC 70[VA] Maximum switching current DC 0.7[A] / AC 0.5[A]
b4-소형 레벨 스위치(SUS형) B레벨 센서

DM-STG
