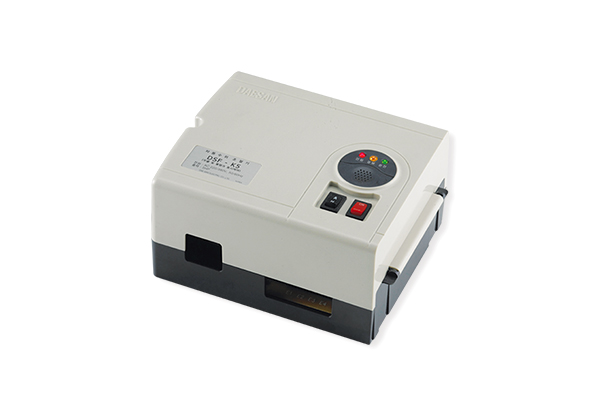

LEVEL CONTROLLER – AUTOMATIC LEVEL SWITCH

DSF-K2, K3, K5

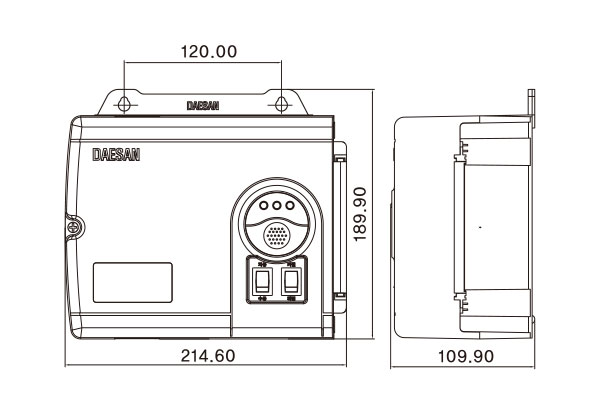

External dimensions

Patent registration No. 10-1116229 Design registration No. 30-0643104

Features

If problem happened in operation, Activate alarm and lamp light-on.
Easy installation.

Specification

TYPE Rated voltage Maximum Load Function Interelectrode voltage, resistance
DSF-K2S Single-phase
AC220V
2HP Water supply control with
water source
Built-in buzzer alarm
Operate~Release
13kΩ~19kΩ
AC 10V
DSF-K3S 3HP
DSF-K2 Three-phass
AC220V/AC380V
2HP
DSF-K3 3HP
DSF-K5 5HP

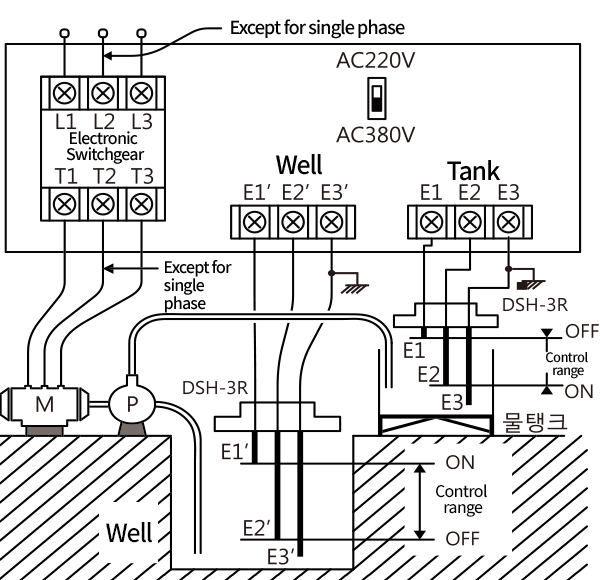

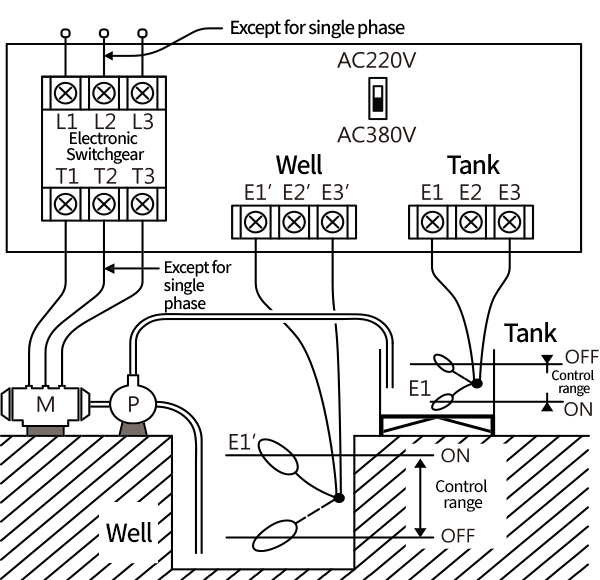

Connection diagram

Related HOLDER
DSH-3R / DHS-N3P(SUS)

Related FLOAT LEVEL SWITCH
DSF-011/DSF-013/DSF-015/DSF-033/DSF-035

Way of usage

  1. Set the switch after check the voltage. (Factory default : AC 380V)
  2. Connect the electrode of E1′, E2′, E3′ for well and E1, E2, E3 for of water tank properly.
  3. Remove the cover about 5cm of E1,E2 and E1′,E2′ stainless steel rod.
  4. Earthing E3′ and remove the whole cover of both E3′ and E3stainless steel rod.
  5. When water level of the well is above E2′ and water level of water tank is below E2, ump will go on running and pump will stop running if water level of the water tank reaches E1
  6. If water level is below E2′, pump will stop running with alarm and signal blinking regardless of water level
  7. When running manually, pump will keep running regardless of water level. so be cautious with demaging pump by idling
  8. When using Float level s/w, use E1′ and E3′ with water supply(well) and use only E1 and E3 for cistern(water tank)
a3-자동 수위 조절기 A레벨 콘트롤러

DSF-K2, K3, K5
