LEVEL SENSOR – P.P type

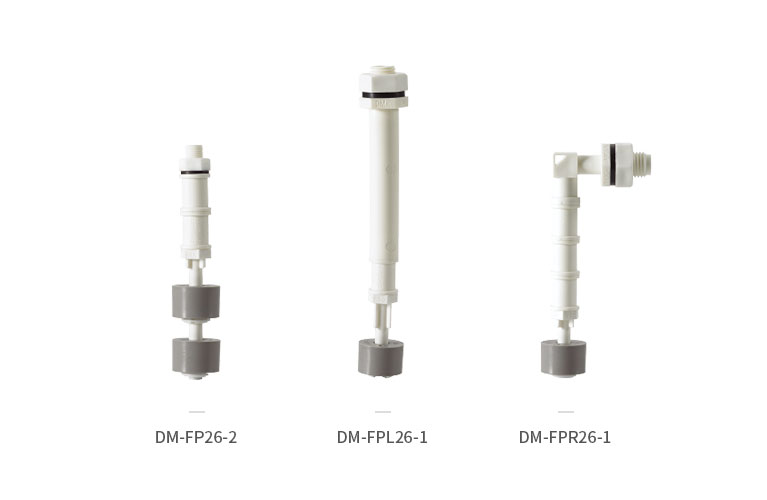

DM-FP26/FPL26/FPR26

Shape/Dimension drawing

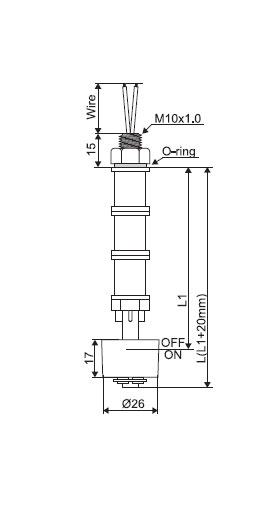

DM-FP26-1

DM-FP26-2

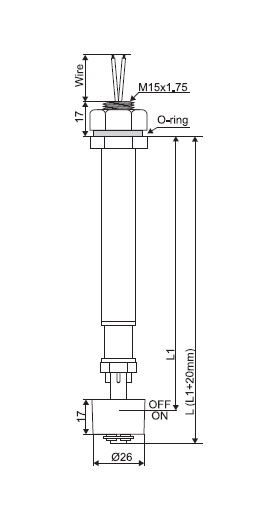

DM-FPL26-1

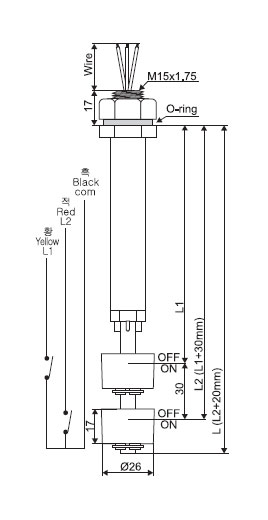

DM-FPL26-2

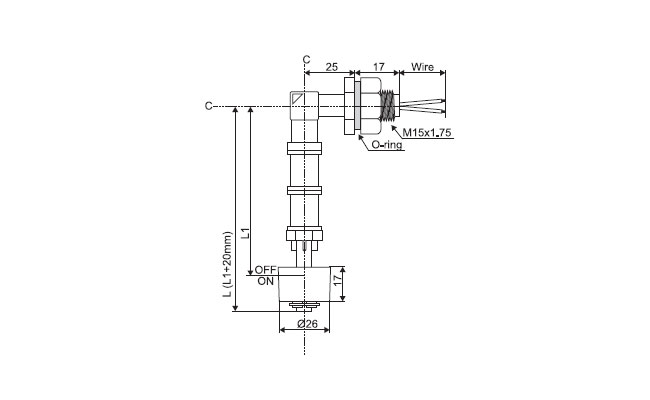

DM-FPR26-1

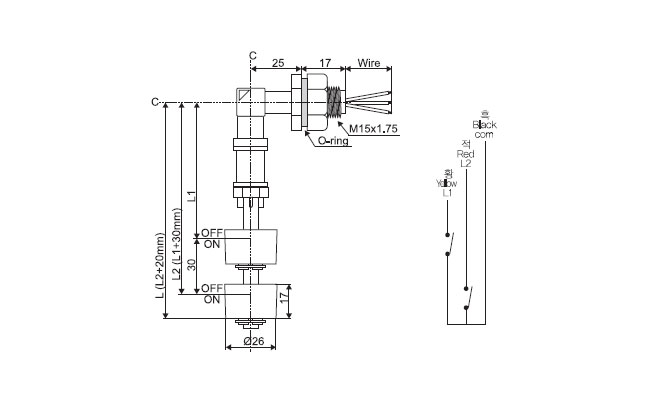

DM-FPR26-2

Specification

Maximum Temperature 80℃ Maximum switching voltage DC 350[V] / AC 300[V]
Maximum Contact capacity DC 50[W] / AC 70[VA] Maximum switching current DC 0.7[A] / AC 0.5[A]
Material of Pipe P.P.(Polypropylene) Material of Float P.P. (Polypropylene)
[L] Length of Pipe [L] can be manufactured at intervals of 10 mm)
Specifications of contact Default is N.C. , When assembling float upside down change to N.O.
Wire Specifications Default UL 1007 AWG 24, 300mm
Custom Type: Teflon wire, PVC Cable / Length: 300mm or more
b3-소형 레벨 스위치(PP형) B레벨 센서

DM-FP26/FPL26/FPR26
