LEVEL CONTROLLER – Functional type

DSF-GSIndication of water level and alarm

Shape/Dimension drawing

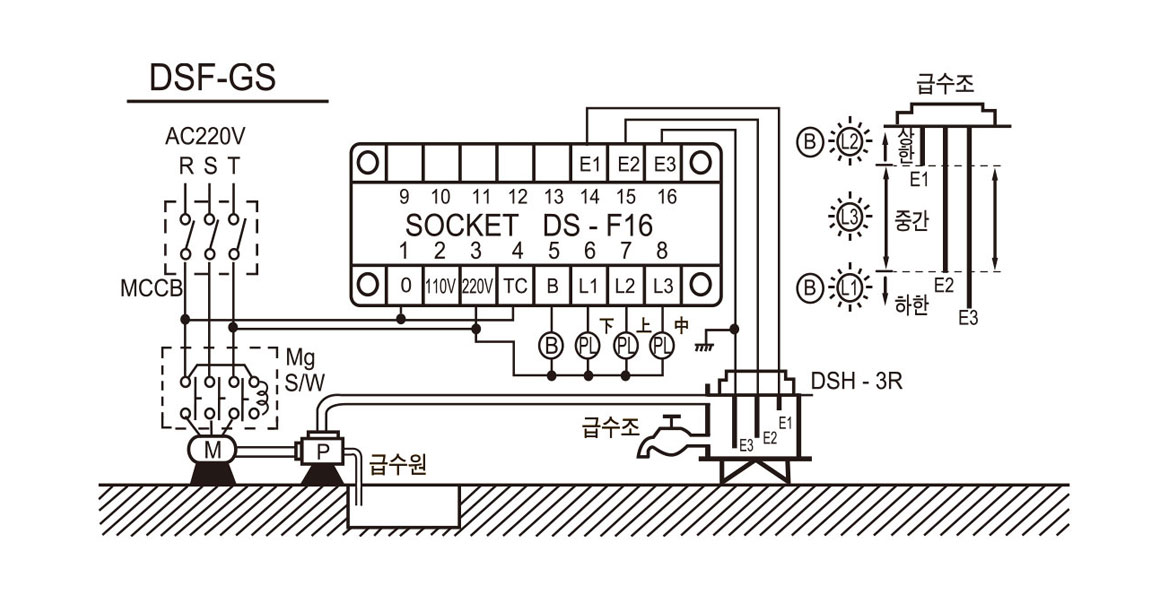

Connection diagram

※ When using a float level switch instead of an electrode rod, it is used for drainage or drainage contact (N.O.) use

Terminal terms

1 : OV
2 : AC110V
3 : AC220V
4 : TC (COM)
5 : B (Buzzer Alarm)
6 : L1 (Lower LAMP)

7 : L2 (Ceiling LAMP)
8 : L3 (Intermediate LAMP)
9 : –
10 : –
11 : –
12 : –

13 : –
14 : E1
15 : E2
16 : E3

Specification

Product No. Usage Maximum Sensing Distance Rated voltage Secondary Voltage
(Electrode Voltage)
Motion Resistance Return Resistance Power Consumption Mounting Type Contact capacity
DSF-GS 3 Zone Water Level Display 300m AC
110/220V
(50/60Hz)
AC 10V 14kΩ 19kΩ 1.4VA Socket DS-F16 5A, 250VAC

Operation

  1. When the water level drops below E2, the lower limit indicator lamp lights and an alarm is sounded.
  2. The alarm stops when the level reaches E2 and the meddle lamp lights.
  3. When the water level reaches E1, the upper limit indicator lamp lights and an alarm is sounded.
a2-기능형 수위 조절기 A레벨 콘트롤러

DSF-GS
