LEVEL SENSOR – P.P type

DM-FH26

Shape/Dimension drawing

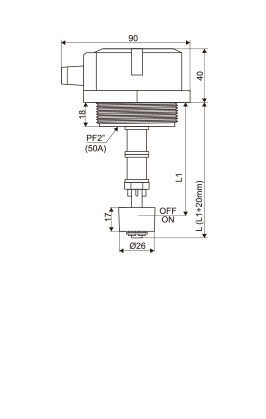

DM-FH26-1

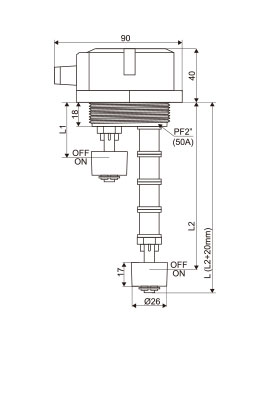

DM-FH26-2

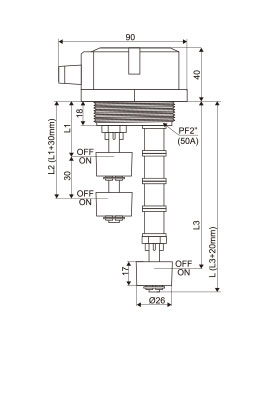

DM-FH26-3

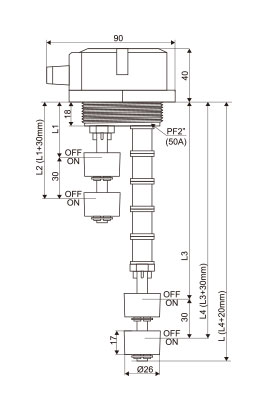

DM-FH26-4

Specification

Maximum Temperature 80℃ Maximum switching voltage DC 350[V] / AC 300[V]
Maximum Contact capacity DC 50[W] / AC 70[VA] Maximum switching current DC 0.7[A] / AC 0.5[A]
Material of Pipe P.P.(Polypropylene) Material of Float P.P. (Polypropylene)
Material of Holder PBT / ABS
 [L] Length of Pipe [L] can be manufactured at intervals of 10 mm

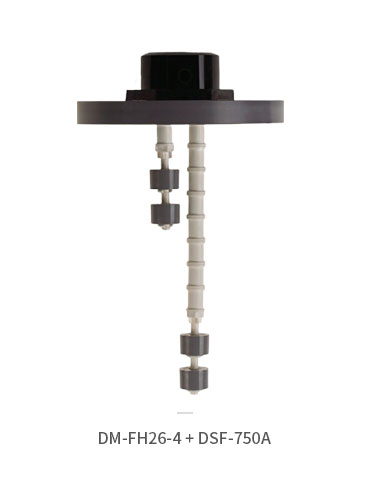

Application of Flange DSF-017(100A), DSF-750A(50A), DSF-765A(65A), DSF-780A(80A)
[Default is N.C. , When assembling float upside down change to N.O.]
b3-소형 레벨 스위치(PP형) B레벨 센서

DM-FH26
