LEVEL SENSOR – FLOAT LEVEL SWITCH

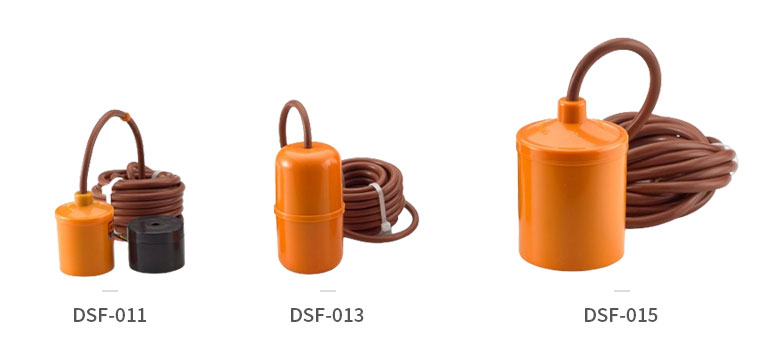

DSF-011/013/015

Features

Contact capacity is large
Wide range of motion, less influence on surface swelling.
Our float holders, flanges, weights are available.
DSF-011 includes weight (DSF-012).

Specification

Porduct No. DSF-011 DSF-013 DSF-015
Contact capacity 250VAC, 3A 250VAC, 5A 250VAC, 10A
Dimension Ø : 42.2mm / L : 57mm Ø : 48mm / L : 90mm Ø : 78.5mm / L : 115mm
Material Float : ABS, Cable : PVC
Ambient temp. 0℃ ~ 50℃
Operation type For water drain N.O. a contact point
For water supply N.O. b contact point
For water supply/drain combined c contact point
Cable length 4m/6m/10m Stock product
Over 10m, order specification (Production by order)

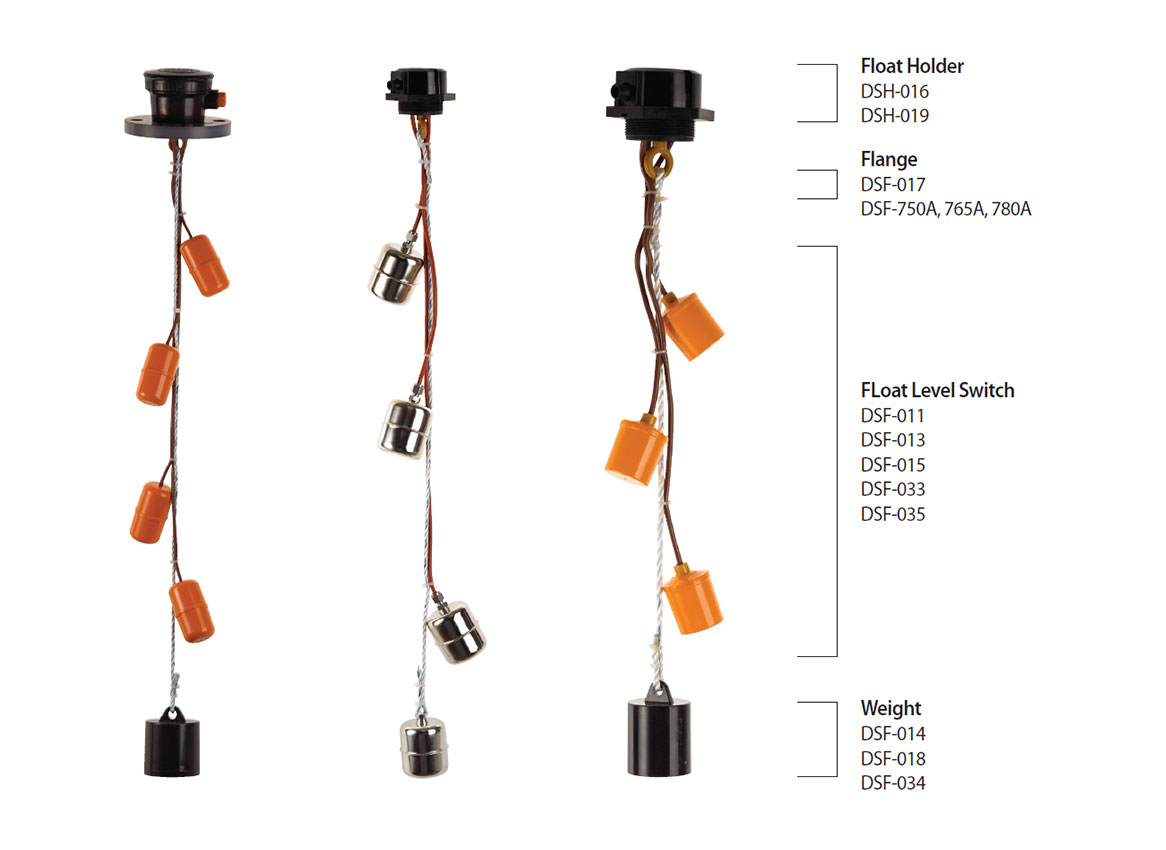

Case of application

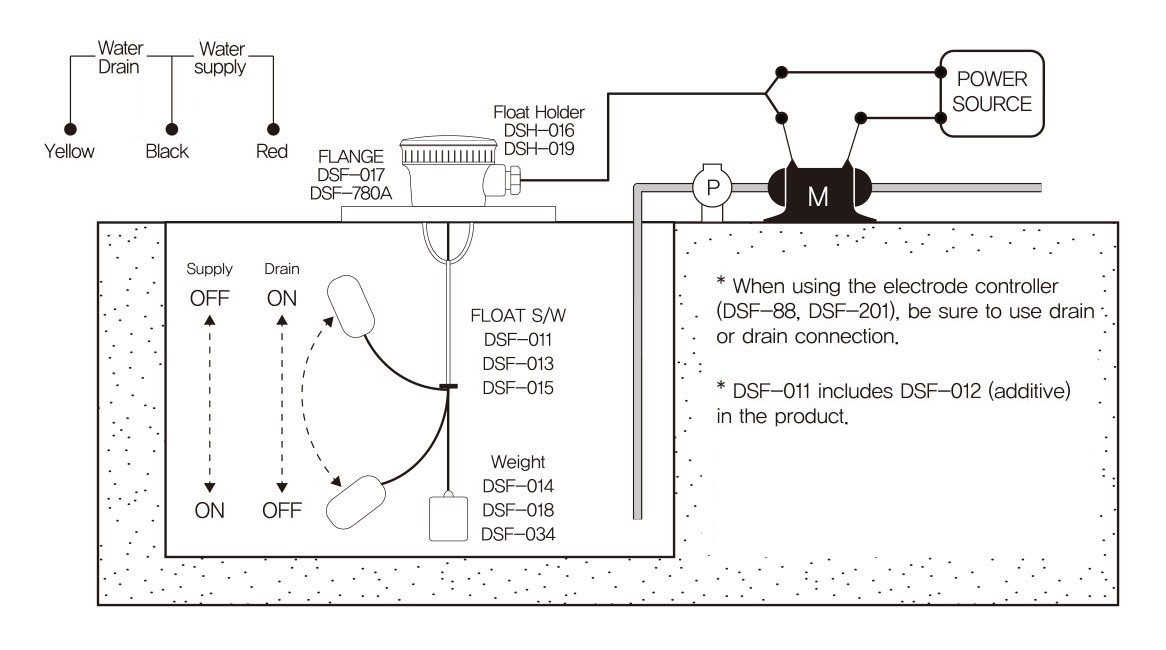

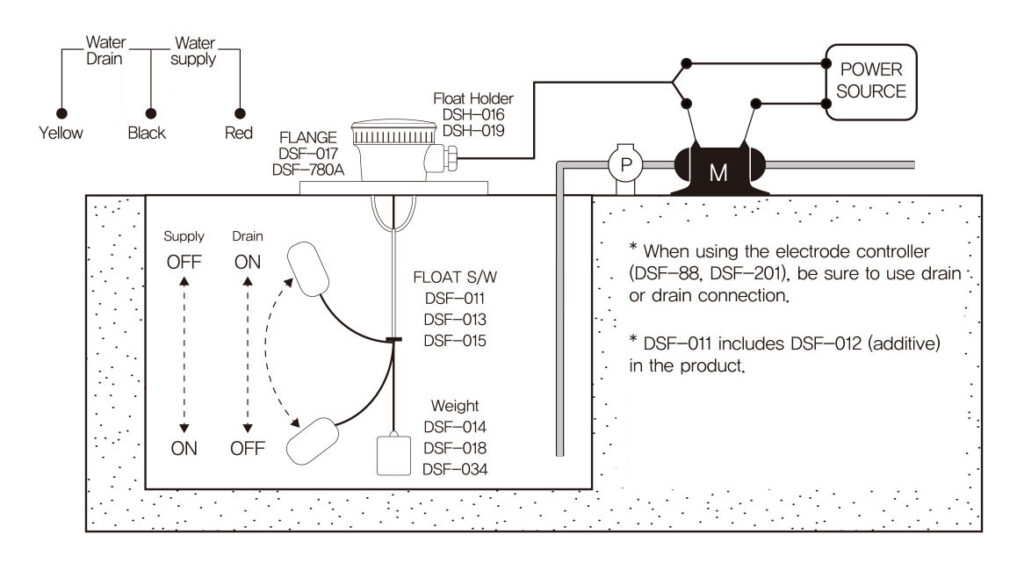

Connection diagram

b2-플로트 레벨 스위치 B레벨 센서

DSF-011/013/015
