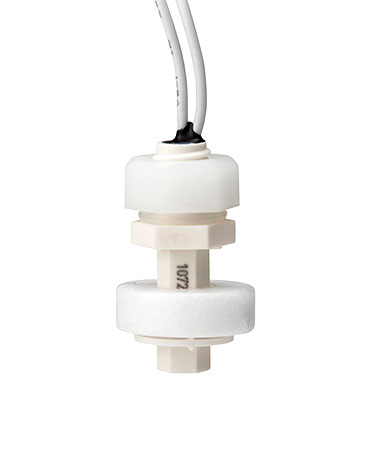

LEVEL SENSOR/ 레벨 센서 – 소형PP형

DM-F20A/F20B

외형/치수도

DM-F20

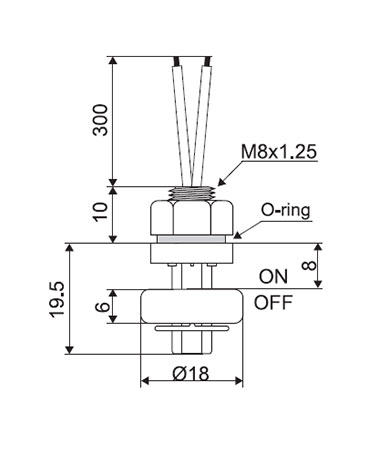

DM-F20A

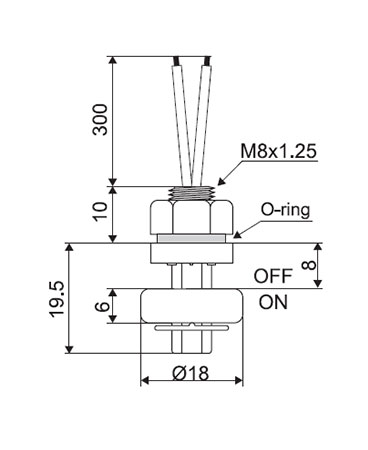

DM-F20B

사양

최대 사용온도 (Maximum Temperature) 80℃ 최대 스위칭 전압 (Maximum switching voltage) DC 350[V] / AC 300[V]
최대 접점용량(Maximum Contact capacity) DC 50[W] / AC 70[VA] 최대 스위칭 전류 (Maximum switching current) DC 0.7[A] / AC 0.5[A]
파이프 재질 (Material of Pipe) P.P.(Polypropylene) Float 재질 (Material of Float) P.P. (Polypropylene)
전선 사양 (Wire Specifications) UL 1007 AWG 24, 300mm 변경불가
b3-소형 레벨 스위치(PP형) B레벨 센서

DM-F20A/F20B
