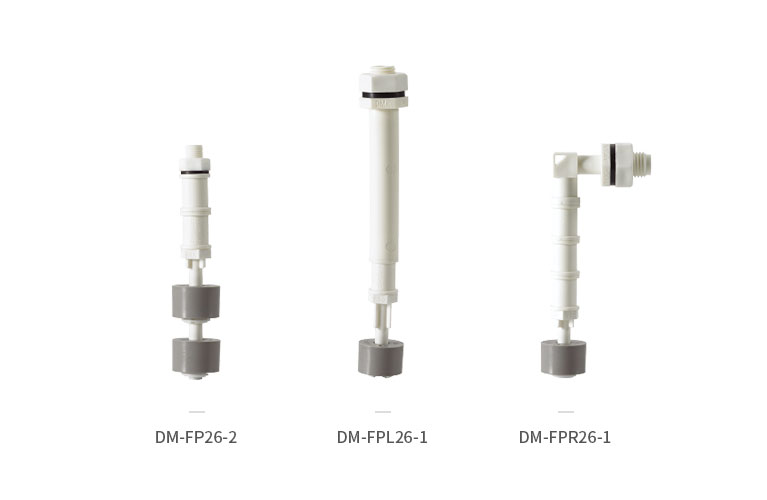

LEVEL SENSOR/ 레벨 센서 – 소형PP형

DM-FP26/FPL26/FPR26

외형/치수도

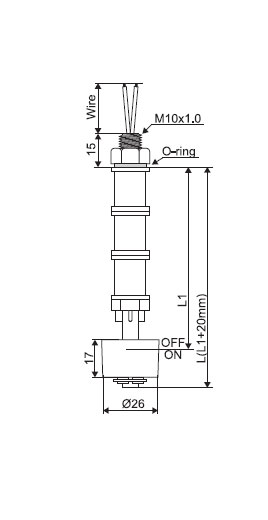

DM-FP26-1

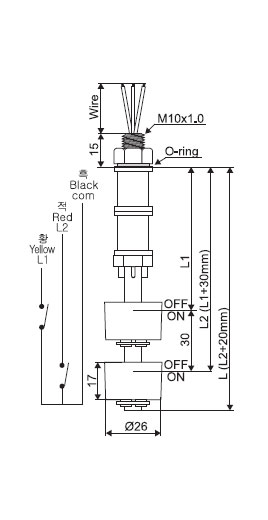

DM-FP26-2

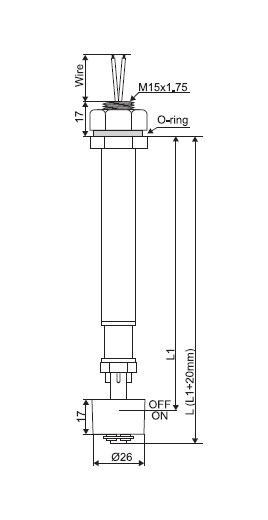

DM-FPL26-1

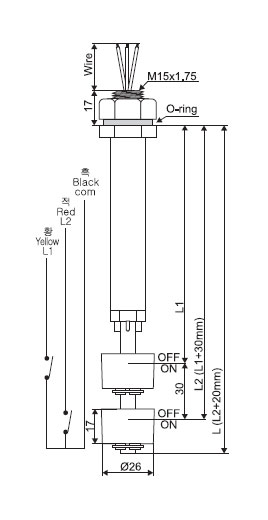

DM-FPL26-2

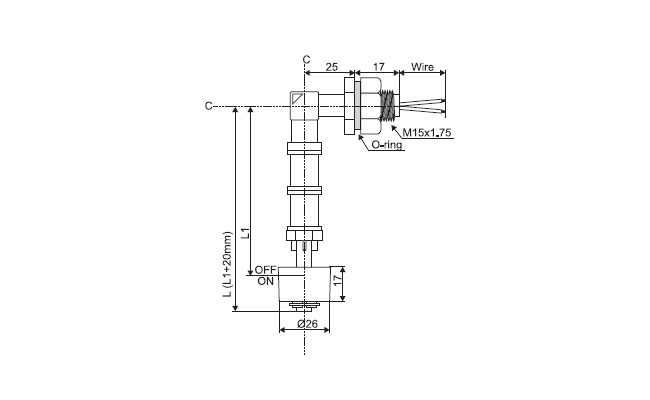

DM-FPR26-1

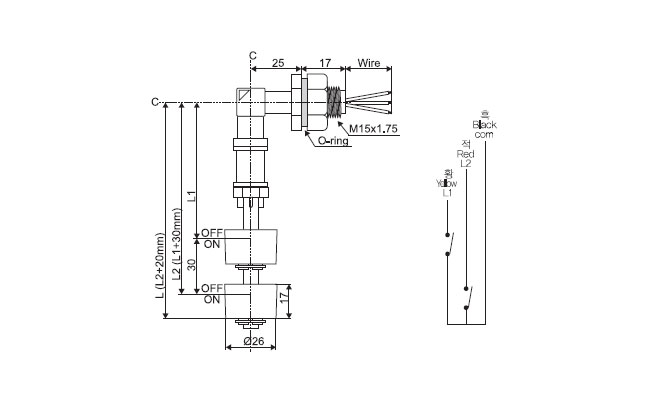

DM-FPR26-2

사양

최대 사용온도 (Maximum Temperature) 80℃ 최대 스위칭 전압 (Maximum switching voltage) DC 350[V] / AC 300[V]
최대 접점용량(Maximum Contact capacity) DC 50[W] / AC 70[VA] 최대 스위칭 전류 (Maximum switching current) DC 0.7[A] / AC 0.5[A]
파이프 재질 (Material of Pipe) P.P.(Polypropylene) Float 재질 (Material of Float) P.P. (Polypropylene)
파이프 길이 [L] (Length of Pipe) [L]은 10mm 단위로 제작가능함 ([L] can be manufactured at intervals of 10 mm)
접점 사양 (Specifications of contact) 기본 b접점(N.C.) Float를 뒤집어 조립시 a접점(N.O.)으로 전환됨
[Default is N.C. , When assembling float upside down change to N.O.]
전선 사양 (Wire Specifications) 기본사양 (Default) UL 1007 AWG 24, 300mm
주문사양 (Custom) 종류 : 테프론 전선, PVC Cable / 길이 : 300mm 이상
b3-소형 레벨 스위치(PP형) B레벨 센서

DM-FP26/FPL26/FPR26
